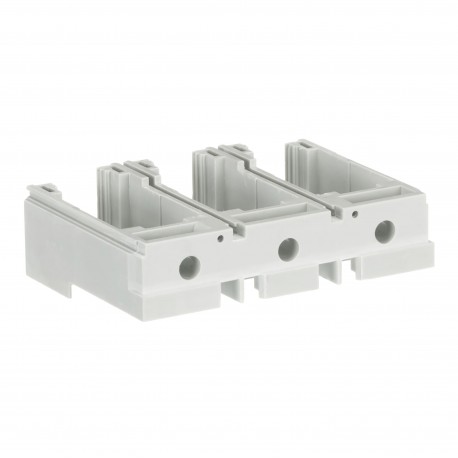

ABB 1SDA104725R1 1SDA104725R1 ABB ADP MONT. FIXED TERMINAL x FP XT5 630 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104725R1 ABB ADP MONT. FIXED TERMINAL x FP XT5 630 3p

1SDA104725R1

104725

ABB

1 Pcs.

ADP MONT. FIXED TERMINAL x FP XT5 630 3p

Automation > Modification set for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Intended for industrial control panels, the 1SDA104725R1 ABB ADP MONT. FIXED TERMINAL x FP XT5 630 3p operates as a fixed terminal mounting adapter for three-phase circuit breaker frames. These hardware elements provide stable mechanical interconnection points within electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT5ADP600-3
  • E-Number (Norway): 4381706
  • EAN: 8015644068172
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.191 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 160 mm
  • Package Level 1 Height: 40 mm
  • Package Level 1 Depth / Length: 180 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT5ADP600-3
E-Number (Norway)4381706
EAN8015644068172
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.191 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width160 mm
Package Level 1 Height40 mm
Package Level 1 Depth / Length180 mm
Package Level 1 Gross Weight0.201 kg
Package Level 1 EAN8015644068172
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000011A1001
External Classifications and Standards
ETIM 9EC002049 - Modification set for power circuit breaker
ETIM 10EC002049 - Modification set for power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370402
