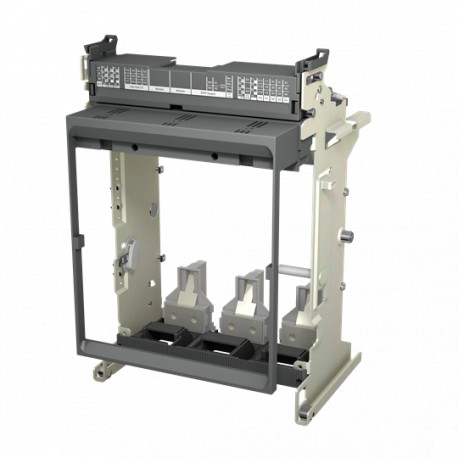

ABB 1SDA104718R1 1SDA104718R1 ABB W MP XT7 4p Kit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104718R1 ABB W MP XT7 4p Kit

1SDA104718R1

104718

ABB

1 Pcs.

W MP XT7 4p Kit Kit W MP XT7 4p

Automation > Modification set for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 1SDA104718R1 ABB W MP XT7 4p Kit acts as a vital installation component for four-pole circuit breaker setups, allowing secure mechanical mounting inside industrial power panels. These manufacturer-certified assemblies ensure correct integration of modular electrical protection devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT7WMP-4
  • E-Number (Norway): 4381539
  • EAN: 8015644068103
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.302 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 200 mm
  • Package Level 1 Height: 45 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT7WMP-4
E-Number (Norway)4381539
EAN8015644068103
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.302 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width200 mm
Package Level 1 Height45 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight0.318 kg
Package Level 1 EAN8015644068103
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7, XT7M
Suitable for Product ClassSACE Tmax XT
VersionW
Technical
Configuration TypeLoose or configurable
Number of Poles4P
Order Multiple1 piece
Rated Uninterrupted Current (Iu)800 A
1000 A
1250 A
1600 A
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002013A1802
External Classifications and Standards
ETIM 9EC002049 - Modification set for power circuit breaker
ETIM 10EC002049 - Modification set for power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370402

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
