1SDA104705R1 ABB XT7-XT7M W FP 4p HR/VR IEC/UL
1SDA104705R1
104705
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

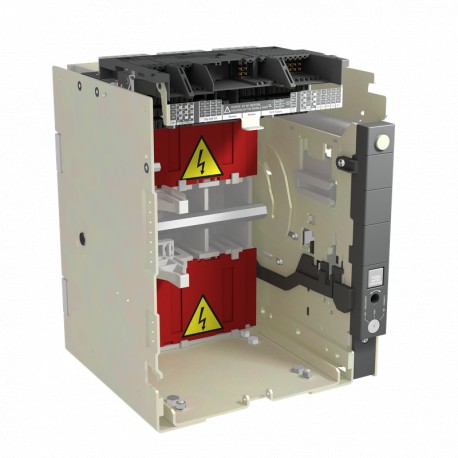

The Abb 1SDA104705R1 XT7-XT7M W FP 4p HR/VR IEC/UL is a withdrawable circuit breaker fixed part that provides a secure mounting and docking base for high-capacity electrical protection units in industrial switchgear. This infrastructure component enables safe extraction and replacement of the breaker mechanism without requiring complete shutdown of the main busbar assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108469A8961
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT7DWFPHRF-4
- E-Number (Norway): 4381521
- EAN: 8015644067977
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 21.7 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 360 mm
- Package Level 1 Height: 340 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8961 |
| 9AKK108471A0817 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT7DWFPHRF-4 |
| E-Number (Norway) | 4381521 |
| EAN | 8015644067977 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 21.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Gross Weight | 21.7 kg |
| Package Level 1 EAN | 8015644067977 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT7, XT7M |
| Suitable for Product Class | SACE Tmax XT |
| Version | W |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT7, XT7M |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Orientated | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002013A1803 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
