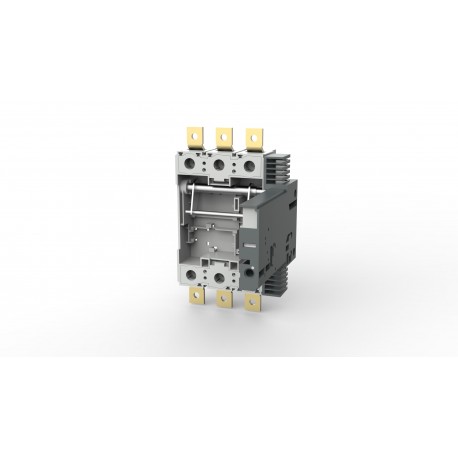

ABB 1SDA104698R1 1SDA104698R1 ABB XT6 W FP 3p VR VR IEC/UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104698R1 ABB XT6 W FP 3p VR VR IEC/UL

1SDA104698R1

104698

ABB

1 Pcs.

XT6 W FP 3p VR VR IEC/UL

Automation > Chassis part power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SDA104698R1 XT6 W FP 3p VR VR IEC/UL is a withdrawable circuit breaker fixed part designed to offer a stable interface for power interruption devices in high-demand electrical panels. It provides the necessary terminal infrastructure to mount and extract protective switching gear safely under industrial operating conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108469A8959
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT6DWFPVRF-3
  • E-Number (Norway): 4381514
  • EAN: 8015644067908
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 21.7 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 360 mm
  • Package Level 1 Height: 340 mm

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108469A8959
9AKK108471A0816
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT6DWFPVRF-3
E-Number (Norway)4381514
EAN8015644067908
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight21.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height340 mm
Package Level 1 Depth / Length380 mm
Package Level 1 Gross Weight21.7 kg
Package Level 1 EAN8015644067908
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeFixed Part
Suitable ForXT6
Suitable for Product ClassSACE Tmax XT
VersionW
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
Rated Frequency (f)50 / 60 Hz
Rated Operational Voltage600 V AC
Rated Uninterrupted Current (Iu)800 A
StandardsIEC60947-2
UL489
Sub-typeXT6
Terminal Connection TypeWithdrawable Circuit-Breakers
Rear flat Vertical
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002012A1003
External Classifications and Standards
ETIM 9EC002043 - Chassis part power circuit breaker
ETIM 10EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
UNSPSC39121616
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370422

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
