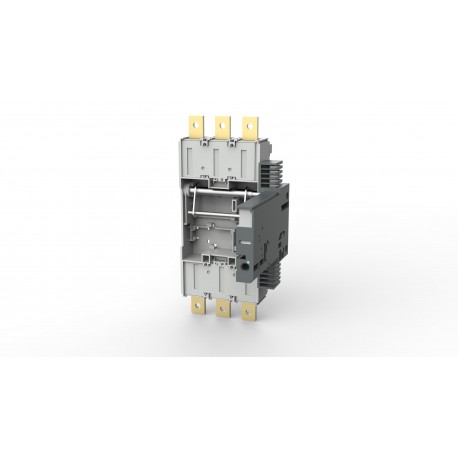

1SDA104692R1 ABB XT5 W FP 630A 3p VR VR IEC/UL
1SDA104692R1
104692
ABB
1 Pcs.
XT5 W FP 630A 3p VR VR IEC/UL
Automation > Chassis part power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8957 |
| 9AKK108471A0815 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5DWFPVR6-3 |
| E-Number (Norway) | 4380379 |
| EAN | 8015644067847 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 21.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Gross Weight | 21.7 kg |
| Package Level 1 EAN | 8015644067847 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tmax XT |
| Version | W |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 600 V AC |
| 600 V DC | |
| Rated Uninterrupted Current (Iu) | 630 A |
| 600 A | |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT5 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Vertical | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000005A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
