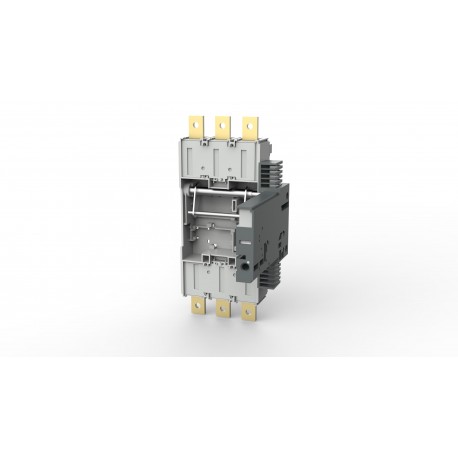

1SDA104691R1 ABB XT5 W FP 630A 3p HR HR IEC/UL
1SDA104691R1
104691
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb xt5 w fp 630a 3p hr hr iec/ul provides a robust withdrawable fixed part assembly designed to support heavy-duty circuit protection components in primary distribution panels. It forms the permanent electrical and mechanical bridge between main power buses and draw-out circuit breakers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108469A8957
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5DWFPHR6-3
- E-Number (Norway): 4380378
- EAN: 8015644067830
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 21.7 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 360 mm
- Package Level 1 Height: 340 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8957 |
| 9AKK108471A0815 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5DWFPHR6-3 |
| E-Number (Norway) | 4380378 |
| EAN | 8015644067830 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 21.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Gross Weight | 21.7 kg |
| Package Level 1 EAN | 8015644067830 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tmax XT |
| Version | W |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 600 V AC |
| 600 V DC | |
| Rated Uninterrupted Current (Iu) | 630 A |
| 600 A | |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT5 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000005A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
