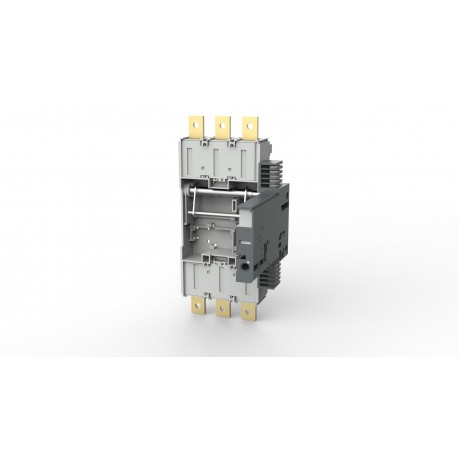

1SDA104690R1 ABB XT5 W FP 630A 3p EF EF IEC/UL
1SDA104690R1
104690
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA104690R1 ABB XT5 W FP 630A 3p EF EF IEC/UL is a fixed part cradle unit that provides the structural mounting and electrical docking interface for withdrawable circuit breakers in demanding power systems. This stationary base enables operators to insert and extract the breaker safely, isolating the device for maintenance without disturbing main cabling. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108469A8957
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5DWFPEF6-3
- E-Number (Finland): 3641390
- E-Number (Norway): 4380377
- EAN: 8015644067823
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 21.7 kg
- Package Level 1 Width: 360 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8957 |
| 9AKK108471A0815 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5DWFPEF6-3 |
| E-Number (Finland) | 3641390 |
| E-Number (Norway) | 4380377 |
| EAN | 8015644067823 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 21.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Depth / Length | 380 mm |
| Package Level 1 Gross Weight | 21.7 kg |
| Package Level 1 EAN | 8015644067823 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tmax XT |
| Version | W |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 600 V AC |
| 600 V DC | |
| Rated Uninterrupted Current (Iu) | 630 A |
| 600 A | |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT5 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Front Extended | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000005A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
