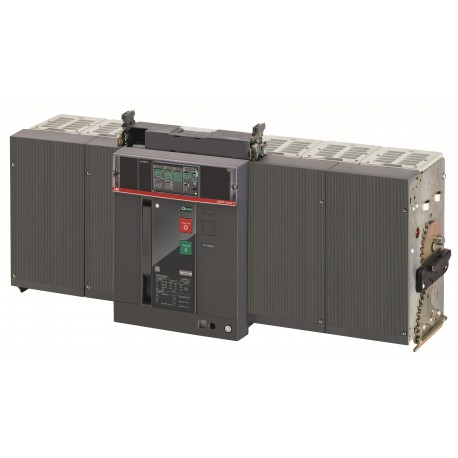

ABB 1SDA104636R1 1SDA104636R1 ABB E6.2H/E9 5000 Ekip Dip LSIG 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104636R1 ABB E6.2H/E9 5000 Ekip Dip LSIG 4p WMP

1SDA104636R1

104636

ABB

1 Pcs.

E6.2H/E9 5000 Ekip Dip LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP3cfb6be0-0db5-4e0f-a1d6-2b8dd537be5f Italy
Simplified SCIP27d508d8-815a-4d73-b1fb-307d1ee77cba Hungary
e72eabb9-7dfc-4aaf-9906-d44ca58fa3fd France
16e10561-5486-454e-8ec7-dd59de487353 Sweden
7a2166a2-0fca-4c92-8362-31d78746245e Germany
fa3b2263-de34-47ab-adec-9d34d805534d Germany
f62de4ce-3a09-4d7b-95cb-c88526071025 Belgium
c3daebb5-e5f9-4464-ab47-457414fc4d2a Spain
7017ceb1-65b5-465f-b48e-254a54def183 Germany
1f3750ff-ac01-4ad2-be65-7b1e9648834f Czech Republic
f16c036b-2ca6-4758-98d1-8193e0042d79 Poland
77331013-a28a-4287-a299-accea79ffff4 Netherlands
49486897-f159-4548-94b9-fa7bced18f9d Croatia
5d8f5636-d17c-40e4-843c-b805ef8b1778 Hungary
d7feebce-c5c2-4228-bf6f-99f9764fdbf6 Estonia
0d3a14ff-f4e1-45b2-9d37-2b09263662f2 Greece
17b68218-62d9-4ef5-a535-efecd808eae0 Portugal
f048053f-d745-415d-91b5-e9405f5c7e4f Poland
0aa4b95b-e1c3-4c80-baee-69b786844714 Bulgaria
0cceac45-c8b5-43df-8cb5-d50ea40af773 Sweden
c727ab56-f09d-4253-9128-139a46f8fea0 France
968fae64-95a2-482b-a2f1-b92136e3a339 Germany
a96b912e-ab4e-469d-bdbf-062e6899b1ba Poland
2bc67b98-f8af-4e9e-b2b3-1446635f7a34 Norway
64a1be7c-84f8-4d0a-bc40-28d0e9f283a9 Finland
2fc283b9-d3f9-4c28-b05f-48856ffd8b7b Belgium
ab77b1bf-f62a-44af-a6f8-e8f8a7899f48 Germany
e9569463-eba6-4a07-97cd-f1f58a7a83ae Denmark
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada9DHXESAC000A000000XX
EAN8015644067168
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width929 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight134 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight138 kg
Package Level 1 EAN8015644067168
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles4P
Power Loss850 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4890
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104636R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 5000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2000.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3000.0 A
Adjustment range undelayed short-circuit release (EF007131) 7500.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
