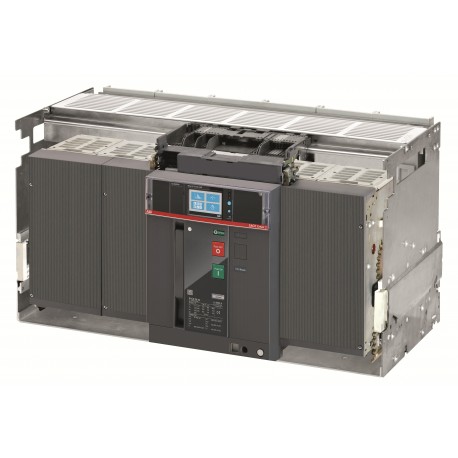

ABB 1SDA104634R1 1SDA104634R1 ABB E6.2H/E9 6300 Ekip Touch LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104634R1 ABB E6.2H/E9 6300 Ekip Touch LSI 3p WMP

1SDA104634R1

104634

ABB

1 Pcs.

E6.2H/E9 6300 Ekip Touch LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    E6.2H/E9 6300 Ekip Touch LSI 3p WMP
  • Product ID:
    1SDA104634R1
  • EAN:
    8015644067144
  • Catalog Description:
    E6.2H/E9 6300 Ekip Touch LSI 3p WMP
  • Long Description:
    MOVING PART FOR C.BREAKER SACE EMAX2 E6.2H 6300 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 6300 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED 900V

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Popular Downloads

Dimensions

  • Product Net Width:
    803mm
  • Product Net Height:
    425mm
  • Product Net Depth / Length:
    383mm
  • Product Net Weight:
    120kg

Technical

  • Rated Impulse Withstand Voltage (Uimp):
    acc. to IEC 60947-2 12 kV
  • Rated Insulation Voltage (Ui):
    AC 1000 V
  • Rated Operational Voltage:
    900 V AC
  • Rated Short-Circuit Making Capacity (Icm):
    (800 V AC) 200 kA
    (900 V AC) 165 kA
  • Rated Short-time Withstand Current (Icw):
    for 1 s 75 kA
    for 3 s 66 kA
  • Power Loss:
    1550 W
  • Standards:
    IEC
  • Number of Poles:
    3
  • Mechanical Durability:
    12000 cycle
    60 cycles per hour

Environmental

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    515 mm
  • Package Level 1 Depth / Length:
    1000 mm
  • Package Level 1 Height:
    610 mm
  • Package Level 1 Gross Weight:
    129 kg
  • Package Level 1 EAN:
    8015644067144

Classifications

  • Object Classification Code:
    Q
  • ETIM 6:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 7:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SDA104634R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 6300 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2520.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3780.0 A
Adjustment range undelayed short-circuit release (EF007131) 9450.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
