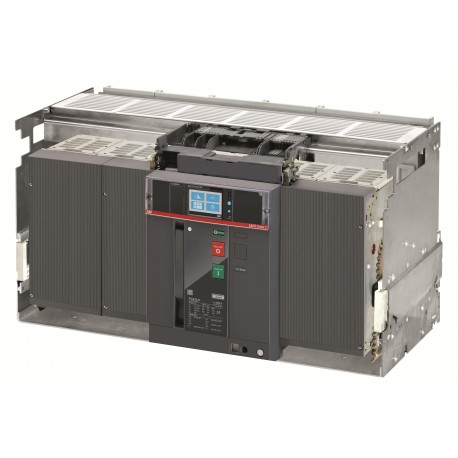

ABB 1SDA104632R1 1SDA104632R1 ABB E6.2H/E9 6300 Ekip Touch LSIG 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104632R1 ABB E6.2H/E9 6300 Ekip Touch LSIG 3p WMP

1SDA104632R1

104632

ABB

1 Pcs.

E6.2H/E9 6300 Ekip Touch LSIG 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP84675c2c-e371-4327-959e-cdfba1921045 Italy
Simplified SCIPd7c0a540-8ab1-4d00-9954-dace3fc3556f Belgium
c18b5e44-86fb-4b91-a904-e662ee3fa0ed Spain
02e603b0-a812-4238-8503-6dea9da5d2f0 Hungary
ad6b7c0f-1772-4940-b713-451c53684a61 France
1a374986-7a13-404a-beb3-d4e55b2f3f38 Sweden
769e2887-667c-488d-84b3-992b0392cb1d Germany
b07f5b88-df19-44ea-9b24-1166e0467633 Germany
e0b9ef63-af37-4f1d-9d29-8712b0d6dada Czech Republic
303d2883-7aae-42e0-a662-1994ea230c4d Hungary
48cb88eb-571d-4d66-98bd-d53a31a297d9 Poland
a0cfd387-17bd-40a4-be30-2ffbdcfcce19 Netherlands
14490839-22c3-450d-8b37-fdf7136882fa Germany
a71148dc-20e8-4e52-a8aa-8754d5d9236f Denmark
92ab9ece-9e99-4529-bc2d-55be0af81929 Sweden
fae73aed-fc5c-49f3-a64b-bd81b8b11224 Bulgaria
e042bc29-5b45-4b4d-bf7e-d6589e04463e Portugal
9ed203e9-f58b-4c29-9145-863ea4efcfd4 Greece
db0ea0e0-8be0-44c6-aeff-1a4aa1400723 France
eaf1dbcf-49e8-4535-b0dd-1944de378d38 Poland
db7044be-7572-49cd-b7d1-d939179c74cb Estonia
8d32505b-14ee-4095-8aaf-0e24d5894493 Croatia
c9e94b93-27f3-4e98-b091-f96f04764d21 Belgium
63cec711-bc63-4c8d-9fac-c41034ace6d4 Germany
723e9727-cf0f-4827-af65-c98f0695aa51 Finland
266db47a-b69b-4899-94ef-347d18cdf378 Norway
14db2515-4274-4c77-aa4a-7034e1b3a300 Poland
3cb9bee3-ddfc-4813-b00b-87caa5eb4a1f Germany
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada96HYETAF000A000000XX
EAN8015644067120
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644067120
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)900 V
ReleaseEkip Touch LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4890
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104632R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 6300 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2520.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3780.0 A
Adjustment range undelayed short-circuit release (EF007131) 9450.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
