> ABB > Rack "Megamax-Emax" > 104631

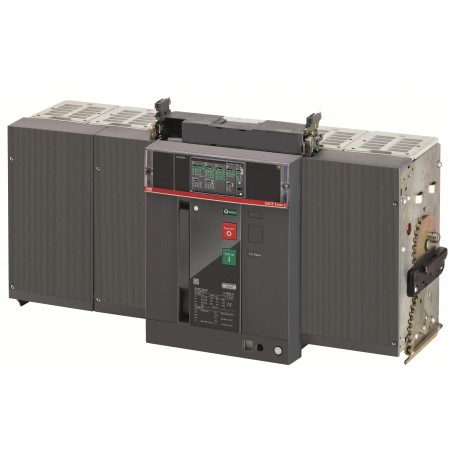

ABB 1SDA104631R1 1SDA104631R1 ABB E6.2H/E9 6300 Ekip Dip LSIG 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104631R1 ABB E6.2H/E9 6300 Ekip Dip LSIG 3p WMP

1SDA104631R1

104631

ABB

1 Pcs.

E6.2H/E9 6300 Ekip Dip LSIG 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP5dfa0499-5e50-4726-bab7-dee2dd4e5ce3 Italy
Simplified SCIP9b0d9127-f4d6-4f28-91d0-378d9bab92c8 Hungary
ed09945a-3dce-4c7e-9f9a-687dca316a58 Germany
33323276-c03d-4cdd-b254-ba12e36b2f2a Sweden
d9f3c746-e04a-4afd-aebb-ee52f8225289 Germany
ee027929-0fed-46c7-ad6f-99565b8be7ac Portugal
23911748-1b13-49df-ae1c-ced193ed42a8 Netherlands
6456ae88-546d-4898-ae1a-37af06871897 Croatia
10b060a1-479b-4f1c-a2ce-160d0ae27f78 France
eb013329-6fb0-4a5a-866e-fb6455886e59 Finland
c28940a2-e1db-4696-8ef4-9a6a4e532dfb Germany
800c8039-8b40-46ec-bb69-93856744f24c Norway
6456ae88-546d-4898-ae1a-37af06871897 Croatia
68a7f565-ba3f-4e80-a0b5-7fbc43133b8c Greece
68a7f565-ba3f-4e80-a0b5-7fbc43133b8c Greece
519b4afc-3452-4dca-9926-224c06041d92 Poland
ee027929-0fed-46c7-ad6f-99565b8be7ac Portugal
7f5ff3ba-160e-44ac-accf-83c200a32816 Poland
367576c0-50fb-476f-acbb-516ecc039002 Germany
87e03408-1fc3-410a-8a18-6a21a9b95adc Spain
7420cf32-9899-46eb-a2fd-31cc0b629eb4 France
ed09945a-3dce-4c7e-9f9a-687dca316a58 Germany
1fb35666-e895-4856-9e38-1cd4655ba76f Hungary
1fb35666-e895-4856-9e38-1cd4655ba76f Hungary
e2d4e67a-376c-4c2d-9af2-2a4827237e50 Estonia
ad25cddb-e61e-4043-87ef-067eef534923 Belgium
87e03408-1fc3-410a-8a18-6a21a9b95adc Spain
e715ea3f-b8ad-4e97-be57-008fb9ed7440 Sweden
c9456c3b-6309-4ca7-a996-ae13605821a2 Poland
d9f3c746-e04a-4afd-aebb-ee52f8225289 Germany
10b060a1-479b-4f1c-a2ce-160d0ae27f78 France
33323276-c03d-4cdd-b254-ba12e36b2f2a Sweden
9b0d9127-f4d6-4f28-91d0-378d9bab92c8 Hungary
23911748-1b13-49df-ae1c-ced193ed42a8 Netherlands
21bdad15-a0d8-409b-b55c-9b5a1095e6e5 Bulgaria
d00317da-ec59-4a6a-8e67-52b75f9d0ded Czech Republic
e2d4e67a-376c-4c2d-9af2-2a4827237e50 Estonia
7420cf32-9899-46eb-a2fd-31cc0b629eb4 France
519b4afc-3452-4dca-9926-224c06041d92 Poland
e715ea3f-b8ad-4e97-be57-008fb9ed7440 Sweden
367576c0-50fb-476f-acbb-516ecc039002 Germany
7f5ff3ba-160e-44ac-accf-83c200a32816 Poland
7e15b200-a702-422b-b85f-efe2aa3a1934 Denmark
c9456c3b-6309-4ca7-a996-ae13605821a2 Poland
d00317da-ec59-4a6a-8e67-52b75f9d0ded Czech Republic
8af0d682-fde2-471d-a489-650a8db84882 Belgium
b5377151-aa93-4077-b9c0-5f4554eca5b7 Germany
eb013329-6fb0-4a5a-866e-fb6455886e59 Finland
21bdad15-a0d8-409b-b55c-9b5a1095e6e5 Bulgaria
7e15b200-a702-422b-b85f-efe2aa3a1934 Denmark
c28940a2-e1db-4696-8ef4-9a6a4e532dfb Germany
800c8039-8b40-46ec-bb69-93856744f24c Norway
b5377151-aa93-4077-b9c0-5f4554eca5b7 Germany
8af0d682-fde2-471d-a489-650a8db84882 Belgium
ad25cddb-e61e-4043-87ef-067eef534923 Belgium
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada96HYETAC000A000000XX
EAN8015644067113
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644067113
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4890
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104631R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 6300 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2520.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3780.0 A
Adjustment range undelayed short-circuit release (EF007131) 9450.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
