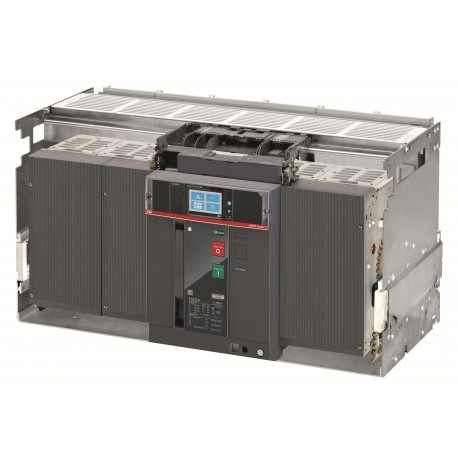

1SDA104540R1 ABB E6.2X/E9 5000 Ekip Hi-Touch LSIG 3p WMP

1SDA104540R1

104540

ABB

1 Pcs.

E6.2X/E9 5000 Ekip Hi-Touch LSIG 3p WMP E6.2X/E9 5000 EkipHi-Tch LSIG 3pWMP 900V

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8015644066208
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644066208
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss850 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 100 kA
(900 V AC) 90 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 90 kA
for 3 s 90 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 100 kA
(900 V AC) 90 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)900 V
ReleaseEkip Hi-Touch LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelX
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4890
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104540R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 5000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2000.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3000.0 A
Adjustment range undelayed short-circuit release (EF007131) 7500.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
