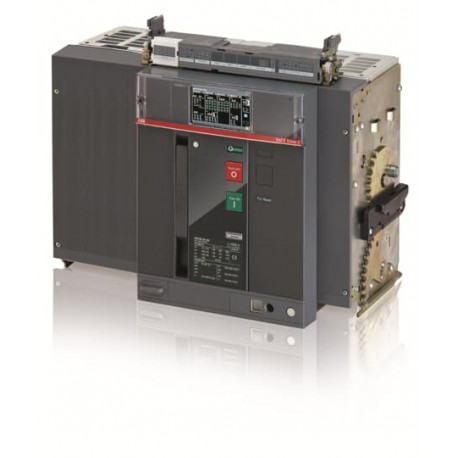

1SDA104533R1 ABB E4.2H/E9 4000 Ekip Dip LSIG 4p WMP
1SDA104533R1
104533
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Heavy-duty electrical infrastructure relies on high-capacity devices such as the Abb 1SDA104533R1 automatic circuit breaker to manage massive current loads and clear severe electrical faults. These withdrawable circuit breakers are normally installed in large-scale industrial switchgear setups to ensure comprehensive network protection.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: E4.2H/E9 4000 Ekip Dip LSIG 4p WMP
- Product ID: 1SDA104533R1
- Catalog Description: E4.2H/E9 4000 Ekip Dip LSIG 4p WMP
- Data Sheet, Technical Information: 1SDC200023D0209
- Instructions and Manuals: 1SDH001000R0002
- Rated Impulse Withstand Voltage (U imp ): acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (U i ): AC 1000 V
- Rated Operational Voltage: 900 V AC
- Rated Short-Circuit Making Capacity (I cm ): (800 V AC) 200 kA (900 V AC) 165 kA
- Rated Short-time Withstand Current (I cw ): for 1 s 75 kA for 3 s 66 kA
- Power Loss: 900 W
- Standards: IEC
- Number of Poles: 4
- Mechanical Durability: 20000 cycle 60 cycles per hour
- Environmental Information: ROHS, REACH
- WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
More info
▲- Extended Product Type:
- E4.2H/E9 4000 Ekip Dip LSIG 4p WMP
- Product ID:
- 1SDA104533R1
- EAN:
- 8015644066130
- Catalog Description:
- E4.2H/E9 4000 Ekip Dip LSIG 4p WMP
- Long Description:
- MOVING PART FOR C.BREAKER SACE EMAX2 E4.2H 4000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED 900V
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Popular Downloads
- Data Sheet, Technical Information:
- 1SDC200023D0209
- Instructions and Manuals:
- 1SDH001000R0002
Dimensions
- Product Net Width:
- 551mm
- Product Net Height:
- 425mm
- Product Net Depth / Length:
- 383mm
- Product Net Weight:
- 74kg
Technical
- Rated Impulse Withstand Voltage (Uimp):
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui):
- AC 1000 V
- Rated Operational Voltage:
- 900 V AC
- Rated Short-Circuit Making Capacity (Icm):
- (800 V AC) 200 kA
(900 V AC) 165 kA
- Rated Short-time Withstand Current (Icw):
- for 1 s 75 kA
for 3 s 66 kA
- Power Loss:
- 900 W
- Standards:
- IEC
- Number of Poles:
- 4
- Mechanical Durability:
- 20000 cycle
60 cycles per hour
Environmental
- Environmental Information:
- ROHS, REACH
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SDL000165R0021
- Environmental Information:
- ROHS, REACH
- Instructions and Manuals:
- 1SDH001000R0002
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 515 mm
- Package Level 1 Depth / Length:
- 615 mm
- Package Level 1 Height:
- 610 mm
- Package Level 1 Gross Weight:
- 67 kg
- Package Level 1 EAN:
- 8015644066130
Classifications
- Object Classification Code:
- Q
- ETIM 6:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 7:
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
