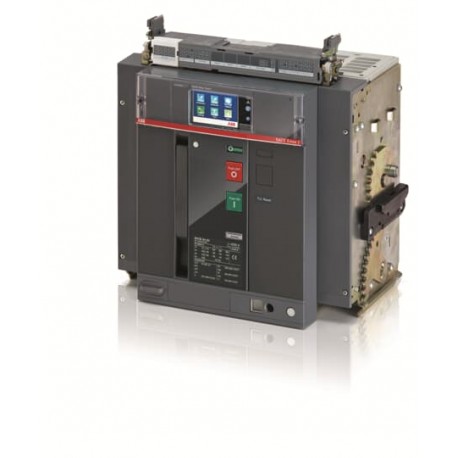

ABB 1SDA104524R1 1SDA104524R1 ABB E4.2H/E9 4000 Ekip Touch LSIG 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104524R1 ABB E4.2H/E9 4000 Ekip Touch LSIG 3p WMP

1SDA104524R1

104524

ABB

1 Pcs.

E4.2H/E9 4000 Ekip Touch LSIG 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an air circuit breaker, this Abb 1SDA104524R1 unit serves as a primary switching and protection device for heavy electrical infrastructure and large industrial plants. It handles massive current loads while delivering precise fault isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: E4.2H/E9 4000 Ekip Touch LSIG 3p WMP
  • Product ID: 1SDA104524R1
  • Catalog Description: E4.2H/E9 4000 Ekip Touch LSIG 3p WMP
  • Data Sheet, Technical Information: 1SDC200023D0209
  • Instructions and Manuals: 1SDH001000R0002
  • Rated Impulse Withstand Voltage (U imp ): acc. to IEC 60947-2 12 kV
  • Rated Insulation Voltage (U i ): AC 1000 V
  • Rated Operational Voltage: 900 V AC
  • Rated Short-Circuit Making Capacity (I cm ): (800 V AC) 200 kA (900 V AC) 165 kA
  • Rated Short-time Withstand Current (I cw ): for 1 s 75 kA for 3 s 66 kA
  • Power Loss: 900 W
  • Standards: IEC
  • Number of Poles: 3
  • Mechanical Durability: 20000 cycle 60 cycles per hour
  • Environmental Information: ROHS, REACH
  • Instructions and Manuals (Part 2): 1SDH001316R0002

More info

▲
  • Extended Product Type:
    E4.2H/E9 4000 Ekip Touch LSIG 3p WMP
  • Product ID:
    1SDA104524R1
  • EAN:
    8015644066048
  • Catalog Description:
    E4.2H/E9 4000 Ekip Touch LSIG 3p WMP
  • Long Description:
    MOVING PART FOR C.BREAKER SACE EMAX2 E4.2H 4000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED 900V

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Popular Downloads

Dimensions

  • Product Net Width:
    425mm
  • Product Net Height:
    425mm
  • Product Net Depth / Length:
    383mm
  • Product Net Weight:
    60kg

Technical

  • Rated Impulse Withstand Voltage (Uimp):
    acc. to IEC 60947-2 12 kV
  • Rated Insulation Voltage (Ui):
    AC 1000 V
  • Rated Operational Voltage:
    900 V AC
  • Rated Short-Circuit Making Capacity (Icm):
    (800 V AC) 200 kA
    (900 V AC) 165 kA
  • Rated Short-time Withstand Current (Icw):
    for 1 s 75 kA
    for 3 s 66 kA
  • Power Loss:
    900 W
  • Standards:
    IEC
  • Number of Poles:
    3
  • Mechanical Durability:
    20000 cycle
    60 cycles per hour

Environmental

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    515 mm
  • Package Level 1 Depth / Length:
    615 mm
  • Package Level 1 Height:
    610 mm
  • Package Level 1 Gross Weight:
    67 kg
  • Package Level 1 EAN:
    8015644066048

Classifications

  • Object Classification Code:
    Q
  • ETIM 6:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 7:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
