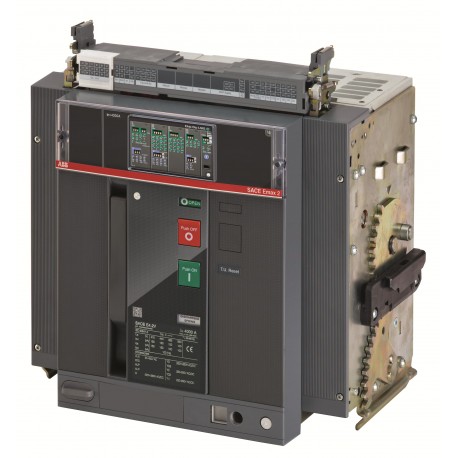

ABB 1SDA104502R1 1SDA104502R1 ABB E4.2S/E9 4000 Ekip Dip LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104502R1 ABB E4.2S/E9 4000 Ekip Dip LSI 3p WMP

1SDA104502R1

104502

ABB

1 Pcs.

E4.2S/E9 4000 Ekip Dip LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP4a604708-4933-4bab-b27f-19fe1b26410a Italy
Simplified SCIP7f90fb8a-6b2e-4b6f-9832-ad5fa49971ac Germany
de87b304-0c9c-45a0-b94a-1b4fce3eb04b Netherlands
cd1bdced-919e-4d27-b16f-0ed216140e41 Croatia
24b2a67b-e22e-475e-bdc0-fff648e3a4be Poland
4cf47720-d9d9-4f79-b537-999b17ee8246 Czech Republic
deb5e441-5de0-4cba-a505-976695d07d4c France
8ad85ef2-585c-417b-8b1f-cee27fb844d8 Denmark
6d1cd95d-3b89-4dde-a47a-2c4078216546 Germany
c92783cb-a542-488f-9f7b-934175bc3d5f Germany
afd4b6fc-957b-4347-afd1-569e39fab6e2 Germany
b239d6e8-3710-462a-9249-d5d3cfc63af9 Germany
5fa479e5-a41b-4f4a-971a-bdb81057bccc France
53179bee-7765-44a8-aed6-5884fc73792c Finland
3bb63a64-2155-417f-84e8-a5650f8e56e9 Estonia
3d767975-bc9e-49fa-8a74-0f9172f39e09 Sweden
8a00aa4a-72f9-427f-80d8-c95207a82612 Belgium
e727f3a9-322c-4646-a294-8216721bb234 Poland
7875ba9f-e91c-4361-bf38-3ee18d994442 Hungary
405904b0-833f-454a-87ca-c2661eb2bf58 Norway
f1f30e9a-9de9-4464-8405-3c38c4d991c5 Poland
75fdff52-2fd1-4773-b371-f78bd9f5f02b Greece
148cd8b0-1cbf-449d-b3a6-8475209cfe19 Portugal
7d623b69-d730-4aa7-8dc7-76820ac32798 Bulgaria
19b97d7b-acb4-44c8-86d0-6402fb5097a0 Sweden
147c4a02-67b1-4547-8f0c-f426aaf6e298 Spain
3209303b-79d8-4a21-ad50-f0461ea35be7 Belgium
c097d9a7-fe2a-4b95-85e4-b15fd79bdab8 Hungary
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada94SWERAB000A000000XX
EAN8015644065829
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width425 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight60 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN8015644065829
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss900 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104502R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 4000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 1600.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 2400.0 A
Adjustment range undelayed short-circuit release (EF007131) 6000.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
