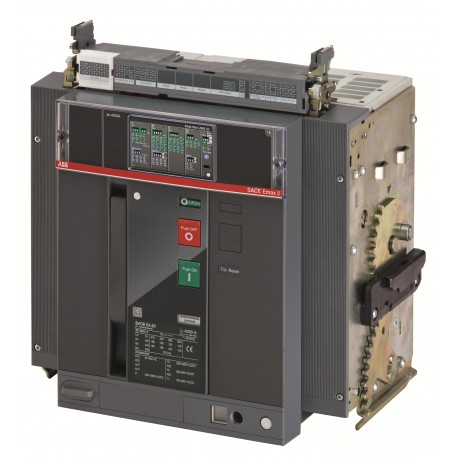

ABB 1SDA104498R1 1SDA104498R1 ABB E4.2S/E9 3200 Ekip Dip LSIG 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104498R1 ABB E4.2S/E9 3200 Ekip Dip LSIG 3p WMP

1SDA104498R1

104498

ABB

1 Pcs.

E4.2S/E9 3200 Ekip Dip LSIG 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP17e40b0b-f20b-4f37-952c-2f83d602997e Italy
Simplified SCIP8364f7cb-228d-4ce0-9de1-330a8604bcd7 Portugal
27225308-f026-49e8-b8cb-bb6a7b27eab9 Greece
56e1cb83-fc90-4981-a590-27a7050e0e41 Bulgaria
a18afcdb-04a4-440a-bf4e-0af89df7c6ec Netherlands
e91ebc56-2813-438d-b574-c8dd8aae6dd4 Czech Republic
cb73da5b-25b0-48eb-bcb0-9c7afcd81589 Estonia
f5627684-9cf9-46c0-a2a7-0369055b1b42 Hungary
43d41970-d345-42bf-b3ee-369c5b3a1995 France
8eaa7940-b26a-4904-a16c-fe4b54f5ed63 Poland
cb73da5b-25b0-48eb-bcb0-9c7afcd81589 Estonia
7a2c8cc9-9289-4b68-a4a5-e2061c168fe0 Hungary
47f33113-5418-46a8-b4cd-3f56f1da0a08 Sweden
0b80fd99-aeee-41ea-b92f-61f8976a47f9 Germany
1b298a73-2223-464c-9b83-91d0a7d607f2 Sweden
faf1d729-24a3-492b-912b-a0b07a09b053 France
c883c8c8-e099-4af1-9f63-8baaf4a79c8c Poland
838db006-9dd5-4ab3-9e64-f7d7f9ec67f7 Spain
8a9a0d65-919e-48c1-8fbd-7283ece181f3 Belgium
c622df2d-c579-4eec-8060-e46395f88744 Poland
27225308-f026-49e8-b8cb-bb6a7b27eab9 Greece
8364f7cb-228d-4ce0-9de1-330a8604bcd7 Portugal
8eaa7940-b26a-4904-a16c-fe4b54f5ed63 Poland
c622df2d-c579-4eec-8060-e46395f88744 Poland
c883c8c8-e099-4af1-9f63-8baaf4a79c8c Poland
e91ebc56-2813-438d-b574-c8dd8aae6dd4 Czech Republic
9a9cb92c-a38f-4147-ae55-32ba9b93c366 Denmark
d5ec3ddb-9100-4481-b414-993fce01170a Croatia
a0feb6ee-74a9-49f0-8f19-76f64f711737 Germany
d526b0f3-8c85-4414-8b50-31024906f8fe Finland
51dce825-170d-4488-9988-821f04a904f6 Germany
11d3b64e-6e94-4909-934c-35442104d930 Belgium
ec0b4cec-3fb6-46b9-8e60-f79a174ff43b Germany
a0feb6ee-74a9-49f0-8f19-76f64f711737 Germany
1b298a73-2223-464c-9b83-91d0a7d607f2 Sweden
8a9a0d65-919e-48c1-8fbd-7283ece181f3 Belgium
11d3b64e-6e94-4909-934c-35442104d930 Belgium
fb0f6aaa-bbda-43c6-9880-2a4cb7e0b1fe Norway
ec0b4cec-3fb6-46b9-8e60-f79a174ff43b Germany
56e1cb83-fc90-4981-a590-27a7050e0e41 Bulgaria
9a9cb92c-a38f-4147-ae55-32ba9b93c366 Denmark
838db006-9dd5-4ab3-9e64-f7d7f9ec67f7 Spain
7a2c8cc9-9289-4b68-a4a5-e2061c168fe0 Hungary
b65aea89-ef3e-4cf7-81af-1e4eff8e0e79 Germany
43d41970-d345-42bf-b3ee-369c5b3a1995 France
b65aea89-ef3e-4cf7-81af-1e4eff8e0e79 Germany
f5627684-9cf9-46c0-a2a7-0369055b1b42 Hungary
0b80fd99-aeee-41ea-b92f-61f8976a47f9 Germany
a18afcdb-04a4-440a-bf4e-0af89df7c6ec Netherlands
d5ec3ddb-9100-4481-b414-993fce01170a Croatia
47f33113-5418-46a8-b4cd-3f56f1da0a08 Sweden
fb0f6aaa-bbda-43c6-9880-2a4cb7e0b1fe Norway
faf1d729-24a3-492b-912b-a0b07a09b053 France
d526b0f3-8c85-4414-8b50-31024906f8fe Finland
51dce825-170d-4488-9988-821f04a904f6 Germany
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada94SVENAC000A000000XX
EAN8056221026499
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width425 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight60 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN8056221026499
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss743 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
