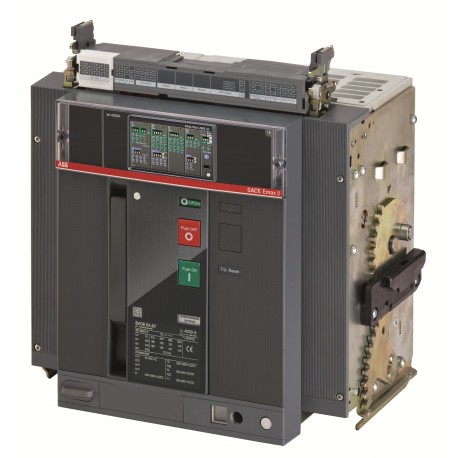

1SDA104497R1 ABB E4.2S/E9 3200 Ekip Dip LSI 3p WMP
1SDA104497R1
104497
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed by Abb under part number 1SDA104497R1, the 1SDA104497R1 ABB E4.2S/E9 3200 Ekip Dip LSI 3p WMP operates as a heavy-duty air circuit breaker intended for main electrical distribution panels. Such devices provide reliable circuit protection and system isolation in high-capacity electrical infrastructures by interrupting heavy fault currents safely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108471A0821
- Extended Product Lifetime: Lifetime Extension Services are Offered
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 37cdac5a-1be7-45a2-ba9f-d2a2d17963a4 Italy
- Simplified SCIP: bb219993-cde3-47ff-af61-d2c857daa11b Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: 94SVENAB000A000000XX
- EAN: 8056221026482
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 37cdac5a-1be7-45a2-ba9f-d2a2d17963a4 Italy |
| Simplified SCIP | bb219993-cde3-47ff-af61-d2c857daa11b Germany |
| 75af855c-3f39-448d-a9ac-45e7839975b2 Greece | |
| 911a8110-1e14-4c45-b6d6-ffe2349c5d5e Estonia | |
| 7f3f76b8-93eb-4d56-b894-64d26eb4ac9e Poland | |
| 5d3023c3-d859-4c81-bbcf-579e9b095260 Sweden | |
| da7f0161-accc-4043-a6b7-7851c0544fb9 Bulgaria | |
| cd3a2644-53dd-490e-bb26-460faa8734e9 Portugal | |
| 746d2a4e-839c-4624-90cd-3d2b7933e453 Germany | |
| 335deaa7-dfa7-4fd8-bf85-5620c13fe97e Denmark | |
| 40e827f4-59fc-4622-a2b4-527198788288 Croatia | |
| bea4fc90-bc9c-49a4-82eb-bc8d2268ff2a Norway | |
| 85c91861-4865-4995-99d1-82e5c363883c Poland | |
| beade68e-39c6-4b43-91e7-13d1d72dda91 France | |
| ff6bc99f-8423-4642-a9d6-2aea03eb137a Hungary | |
| c27f205b-89e7-4227-9f9b-e0d9ed2c95c7 Belgium | |
| ae81eda6-65c1-4b41-bd0e-ba40b4e85b1d France | |
| 50b4b6d0-7cb0-4e9e-bed5-c37a44e369c1 Germany | |
| 1c6ec906-a63c-47e4-9a45-b432025a6eca Poland | |
| 1a69e448-af42-4076-bd93-d07586792839 Germany | |
| ad77be34-1762-41fb-b048-499ddee93188 Finland | |
| 15c66ebb-97ca-4270-906e-0ae8083b562f Belgium | |
| b15cd481-9c7a-4e1c-94d8-f90f73c22844 Sweden | |
| 7045fde4-bd42-480d-b37d-7db3b0c528d5 Czech Republic | |
| 9a3c3eee-3436-4da5-b04c-ae1056927bcc Netherlands | |
| eb067f0c-1a48-48c3-8a6f-9bb64bbffef2 Spain | |
| 1c82ef81-0232-4d33-b286-581c6f0cdcc6 Germany | |
| d990b354-dcc6-4d14-a0db-901be08dc385 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 94SVENAB000A000000XX |
| EAN | 8056221026482 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8056221026482 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 743 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
