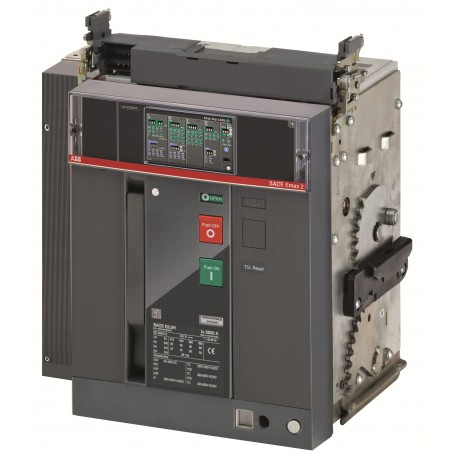

1SDA104488R1 ABB E2.2H/E9 2000 Ekip Dip LSIG 4p WMP
1SDA104488R1
104488
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA104488R1 ABB E2.2H/E9 2000 Ekip Dip LSIG 4p WMP operates as a withdrawable air circuit breaker built to provide robust fault interruption and selective protection in heavy electrical grids. This unit is integrated into modular switchgear to safeguard critical infrastructure against overcurrents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108471A0821
- Extended Product Lifetime: Lifetime Extension Services are Offered
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 52fbebe2-5aa8-4061-b508-22070005ca78 Italy
- Simplified SCIP: 74882bb2-f519-4351-b345-48c6814cdc7c Hungary
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: 9BHTEKAC000A000000XX
- EAN: 8056221026437
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 52fbebe2-5aa8-4061-b508-22070005ca78 Italy |
| Simplified SCIP | 74882bb2-f519-4351-b345-48c6814cdc7c Hungary |
| 645af36c-c67e-4ce6-b278-d3638d09426e Germany | |
| e3dbacc1-1e7b-4737-ae05-64b3a2c7d68e Spain | |
| 6287c093-cb25-4248-8a66-9b3cb72c8c61 Belgium | |
| f32903ec-d778-45cc-a0bd-b46614380280 Norway | |
| e37fee90-e055-43d4-a336-99d21e54c1e4 Germany | |
| 7475aefc-6437-483b-8775-9df3278582f9 France | |
| 1e1d9348-d42f-48d7-b8b9-c386ea9dd386 Germany | |
| b1aedfa2-d2c4-44e7-b928-cb78529e9be0 Sweden | |
| cd0c90ef-acef-47d4-900b-3d14c33dcb72 Germany | |
| ba763900-69e3-4867-ac1e-ee63efcfbbfc Netherlands | |
| 44a958e6-931a-4017-8c37-bb909f3e2f77 Croatia | |
| d26bde7d-6769-424c-815b-e6b12e12ef73 Portugal | |
| 8c53e58a-5ffd-45b6-bca3-44aff4a0c51c Finland | |
| fc04f46a-2ff3-4fd6-8f6c-45ee90dc0a32 Belgium | |
| 6287c093-cb25-4248-8a66-9b3cb72c8c61 Belgium | |
| 5670045d-895d-496e-843e-6ad681646c2b Bulgaria | |
| 1e1d9348-d42f-48d7-b8b9-c386ea9dd386 Germany | |
| 8c53e58a-5ffd-45b6-bca3-44aff4a0c51c Finland | |
| 5117ba24-c8d0-43a6-833e-44bf3c996a8a Denmark | |
| 95f2858f-9f77-4b0b-a34b-ba98ac4ec039 France | |
| 9793cbee-014d-4c1e-9643-f38c4031edfc Hungary | |
| 71686759-a874-4239-ab42-08212600a960 Poland | |
| 9793cbee-014d-4c1e-9643-f38c4031edfc Hungary | |
| 6598264d-d387-4e7a-8412-c36a553048bb Germany | |
| f32903ec-d778-45cc-a0bd-b46614380280 Norway | |
| 90f056d9-60fc-43ea-b8ef-a8778227b3ca Czech Republic | |
| e6257903-d0b5-4663-9660-315798a77a44 Poland | |
| 5117ba24-c8d0-43a6-833e-44bf3c996a8a Denmark | |
| a86d970d-d4db-45cb-9a54-3302182a86ea Greece | |
| e37fee90-e055-43d4-a336-99d21e54c1e4 Germany | |
| 6598264d-d387-4e7a-8412-c36a553048bb Germany | |
| 44a958e6-931a-4017-8c37-bb909f3e2f77 Croatia | |
| fc04f46a-2ff3-4fd6-8f6c-45ee90dc0a32 Belgium | |
| 74882bb2-f519-4351-b345-48c6814cdc7c Hungary | |
| e6257903-d0b5-4663-9660-315798a77a44 Poland | |
| 7475aefc-6437-483b-8775-9df3278582f9 France | |
| cd0c90ef-acef-47d4-900b-3d14c33dcb72 Germany | |
| b1aedfa2-d2c4-44e7-b928-cb78529e9be0 Sweden | |
| 645af36c-c67e-4ce6-b278-d3638d09426e Germany | |
| a86d970d-d4db-45cb-9a54-3302182a86ea Greece | |
| 8220a549-3af5-4ce1-aae6-7183af1262d3 Poland | |
| d26bde7d-6769-424c-815b-e6b12e12ef73 Portugal | |
| 71686759-a874-4239-ab42-08212600a960 Poland | |
| ba763900-69e3-4867-ac1e-ee63efcfbbfc Netherlands | |
| 356092d6-8c84-4df6-bd4c-637cd6351c31 Sweden | |
| 356092d6-8c84-4df6-bd4c-637cd6351c31 Sweden | |
| e3dbacc1-1e7b-4737-ae05-64b3a2c7d68e Spain | |
| d55bea93-a8fd-464c-aba5-d5a805e855e6 Estonia | |
| 8220a549-3af5-4ce1-aae6-7183af1262d3 Poland | |
| d55bea93-a8fd-464c-aba5-d5a805e855e6 Estonia | |
| 95f2858f-9f77-4b0b-a34b-ba98ac4ec039 France | |
| 90f056d9-60fc-43ea-b8ef-a8778227b3ca Czech Republic | |
| 5670045d-895d-496e-843e-6ad681646c2b Bulgaria | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 9BHTEKAC000A000000XX |
| EAN | 8056221026437 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 407 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8056221026437 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 450 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
