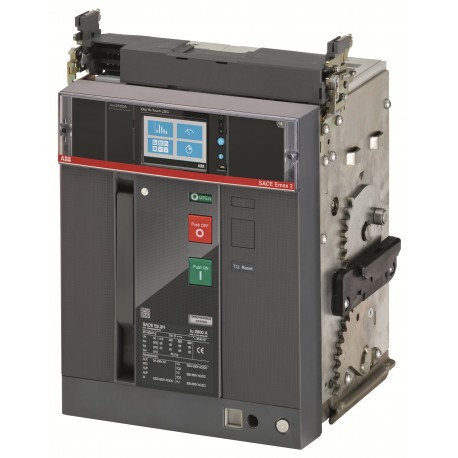

ABB 1SDA104476R1 1SDA104476R1 ABB E2.2H/E9 2000 Ekip Touch LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104476R1 ABB E2.2H/E9 2000 Ekip Touch LSI 3p WMP

1SDA104476R1

104476

ABB

1 Pcs.

E2.2H/E9 2000 Ekip Touch LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
Simplified SCIP7f3be359-1216-4d35-b9d4-eab9cbb290fd Poland
cc5cb3c7-f20f-4e57-a699-41c96b5a1eef Norway
de6447a0-df24-4a20-8466-f5f11a930a19 Finland
de9a0119-6bd3-4d97-a5d3-1e74d280ccf7 Belgium
8ad28a13-de77-4592-95fd-897a501569c8 Germany
8b03cfe9-7657-4778-acb1-5e456af5c76a Denmark
08ff7a7d-f7c4-4a97-ab1f-2f60e52ccc4e Germany
18044daa-d0c0-4608-bafb-451bb9d8efe4 Croatia
5ede7a36-3b83-4497-b7e0-ef217691ad89 Czech Republic
e5eed5bf-546a-4db4-a608-d4b83c43c056 Poland
bf55e5c1-47fb-4603-bc85-150f2bba6810 Netherlands
13fc1439-00ad-45bf-abdd-5ede1ce20a7d Hungary
7635dc57-155c-4b3b-8d16-637f7a9317ca Estonia
f49fce99-7561-4c32-880a-478431f7efd7 Greece
05702ea0-ab49-475f-8469-3cf48dabeb77 Portugal
8d8d3917-aca7-4875-98c5-244d35793f56 Bulgaria
64831dac-5718-413a-b2dd-c2a16236b94f Sweden
55ebef71-4502-4891-8767-e9a15ef09392 Poland
a940f727-3880-42c1-bdc0-d5e1d498ddaf France
560d9c18-bf6e-4a6e-b95a-82f0dcbd0d2c Sweden
f40ef067-0a7a-4928-831d-6affa0d2f0c7 Germany
6e3f01fd-be03-4be8-9d80-b02a9984a4e1 Germany
7e9377e0-b60f-471e-982f-360fb85b51c6 France
1c74a6dc-b960-484a-a4e4-4114d79c6a3d Hungary
1ac41cb5-8851-4d50-97e5-9a58e2df1d99 Spain
5b96a5ce-08d7-4ea3-9d9d-b2ed25c73f5d Belgium
a16503c8-c993-4d7a-9277-704db1bb451b Germany
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada92HTEKAE000A000000XX
EAN8056221026352
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width317 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight48 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight53 kg
Package Level 1 EAN8056221026352
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 2000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss450 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)900 V
ReleaseEkip Touch LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 900V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4888
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
