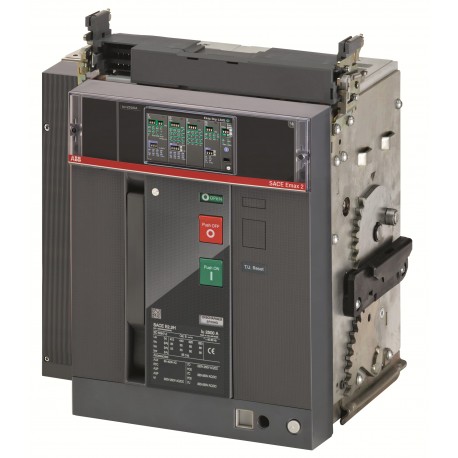

1SDA104458R1 ABB E2.2S/E9 2000 Ekip Dip LSIG 4p WMP

1SDA104458R1

104458

ABB

1 Pcs.

E2.2S/E9 2000 Ekip Dip LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SDA104458R1 ABB E2.2S/E9 2000 Ekip Dip LSIG 4p WMP is a heavy-duty withdrawable air circuit breaker configured for comprehensive protection in multi-phase power networks. Industrial facilities rely on these robust devices to isolate faults and manage large electrical loads safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated permanent current Iu (EF001389): 2000 A
  • Rated voltage (EF003977): 900 V
  • Overload release current setting (EF002336): 2000 A
  • Adjustment range undelayed short-circuit release (EF007131): 3000.0 A
  • Integrated earth fault protection (EF007296): Yes
  • Type of electrical connection of main circuit (EF006819): Connection at separate chassis part
  • Device construction (EF008240): Built-in device slide-in technique (withdrawable)
  • Suitable for DIN rail (top hat rail) mounting (EF007250): No
  • DIN rail (top hat rail) mounting optional (EF008904): No
  • With switched-off indicator (EF007006): Yes
  • With integrated under voltage release (EF001390): No
  • Number of poles (EF001391): 4
  • Position of connection for main current circuit (EF006671): Connection at separate chassis part
  • Type of control element (EF006976): Push button
  • Complete device with protection unit (EF008906): Yes
  • Motor drive integrated (EF006697): No

More info

▲
  • Extended Product Type:
    E2.2S/E9 2000 Ekip Dip LSIG 4p WMP
  • Product ID:
    1SDA104458R1
  • EAN:
    8015644065386
  • Catalog Description:
    E2.2S/E9 2000 Ekip Dip LSIG 4p WMP
  • Long Description:
    MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 2000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED 900V

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85362090

Popular Downloads

Dimensions

  • Product Net Width:
    407mm
  • Product Net Height:
    425mm
  • Product Net Depth / Length:
    383mm
  • Product Net Weight:
    55kg

Technical

  • Rated Impulse Withstand Voltage (Uimp):
    acc. to IEC 60947-2 12 kV
  • Rated Insulation Voltage (Ui):
    AC 1000 V
  • Rated Operational Voltage:
    900 V AC
  • Rated Short-Circuit Making Capacity (Icm):
    (800 V AC) 105 kA
    (900 V AC) 105 kA
  • Rated Short-time Withstand Current (Icw):
    for 1 s 50 kA
    for 3 s 50 kA
  • Power Loss:
    450 W
  • Standards:
    IEC
  • Number of Poles:
    4
  • Mechanical Durability:
    25000 cycle
    60 cycles per hour

Environmental

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    515 mm
  • Package Level 1 Depth / Length:
    515 mm
  • Package Level 1 Height:
    610 mm
  • Package Level 1 Gross Weight:
    53 kg
  • Package Level 1 EAN:
    8015644065386

Classifications

  • Object Classification Code:
    Q
  • ETIM 6:
    EC000228 - Power circuit-breaker for trafo/generator/installation prot.
  • ETIM 7:
    EC000228 - Power circuit-breaker for trafo/generator/installation protection
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
