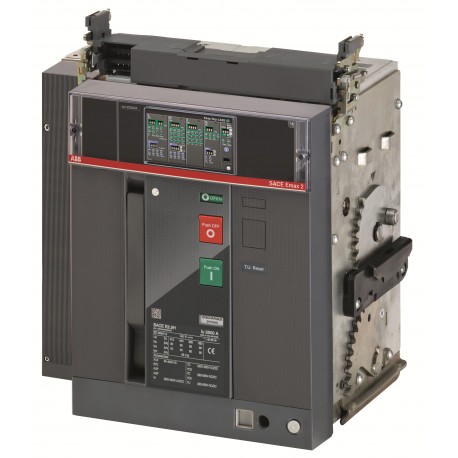

ABB 1SDA104457R1 1SDA104457R1 ABB E2.2S/E9 2000 Ekip Dip LSI 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104457R1 ABB E2.2S/E9 2000 Ekip Dip LSI 4p WMP

1SDA104457R1

104457

ABB

1 Pcs.

E2.2S/E9 2000 Ekip Dip LSI 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP1289d643-2259-45f9-b3bc-a0717851dbb6 Italy
Simplified SCIPd9561dea-e031-4732-ae9e-94a2d813435b Netherlands
724c7057-ca35-49f8-b43e-aea2dc00e669 Poland
27c97ce5-7fbf-4d91-bcf5-a5ae7608bdba France
9ba3a301-500a-40be-bbdb-c24adac26e03 Hungary
b05003be-1e59-468b-a85e-bdf0fcb78d5f Sweden
78a1add3-586a-495c-841b-b67e2b295b20 Germany
303e3ca5-7c9d-4930-b93d-59f126cbd995 Germany
b97fdc45-ff27-42d9-89c3-1fbb0d3bcb5d Poland
a6d2ae0a-c13d-475d-93f4-6bd30cd26169 Germany
52a23916-898c-474a-ab79-556d9b86b8a3 Norway
de73c4ad-a1dd-4879-9589-ebb5881fc845 Poland
cd25e52e-3756-44ba-90b1-b5a217fe9c87 Belgium
04b99d34-3c1a-4c66-9a96-782fae23c812 Spain
ec9fa878-0d29-4ea2-9755-e765d3338bde France
f67e1f76-47da-45b5-91c8-f1a51d7f72d8 Sweden
753061d8-2f62-44c7-a831-a80cff5d925e Finland
1d586d8d-3182-4051-9bc0-40ea8ad15902 Belgium
35cbb3fd-a64b-4709-8d70-d824b0a7c4d3 Denmark
6b88df7f-f149-4ca9-9379-cdf25dd8a67c Germany
782c9a69-82f2-4998-8186-bfab31182195 Germany
817fae3c-2687-443c-92d3-d106afdced12 Bulgaria
8e9644c3-9583-49c0-91d3-7ac9661708f4 Portugal
02e36c43-b506-4927-bd4c-910355da328a Greece
8f0315b8-0ee0-4a67-80e3-7bf3a7b93215 Croatia
901eb151-ff2a-442c-8611-20e4ca77d46e Czech Republic
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada9BSTEKAB000A000000XX
EAN8015644065379
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width407 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight55 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644065379
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 2000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss450 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 900V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4888
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104457R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 2000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2000 A
Adjustment range short-term delayed short-circuit release (EF007129) 1200.0 A
Adjustment range undelayed short-circuit release (EF007131) 3000.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
