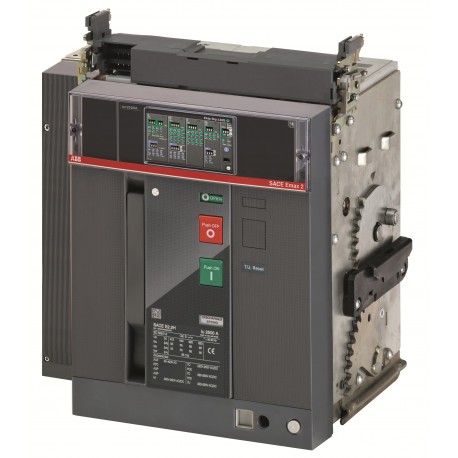

ABB 1SDA104453R1 1SDA104453R1 ABB E2.2S/E9 1250 Ekip Dip LSIG 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104453R1 ABB E2.2S/E9 1250 Ekip Dip LSIG 4p WMP

1SDA104453R1

104453

ABB

1 Pcs.

E2.2S/E9 1250 Ekip Dip LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP226fddac-f807-4203-89fb-e2217e6f74e0 India
Simplified SCIP62b154ef-0f3d-4871-9e95-576410cbd212 Germany
64e89477-3e20-42f7-b0b1-e16818632c5d France
357f9f76-40d8-4bf9-8574-61a100717192 Estonia
9f45bd1e-818d-409d-a963-8d37fd505638 Greece
84377287-291f-4ec0-afc3-499196ccbcbf Germany
e6dc0ffa-49aa-443e-adf9-5ef93b6330bb Germany
6f8ab1cd-d679-48a7-9a6f-f33398727180 Sweden
9372a361-8895-4d1a-8c88-3886effcb721 Portugal
686c93f7-cd1b-439c-a655-e6cb753aa285 Germany
f3bd406e-1f90-4db5-9540-c4e833725096 Poland
f741c134-1d68-4a67-9c38-8aa1dc99a80c Germany
21210aea-d0ad-4890-93ad-33639fa87efc Denmark
5052486d-bb4e-426c-93b0-86cd5ed3fce1 Belgium
ffcbb33d-aa9b-40bd-ba29-ed5b39ac9f59 Norway
ee9f435c-9d36-45bb-8ee0-8b2fd508e3e0 Finland
cac41e4b-160b-4bcb-8c7e-8373a646337d Croatia
3444ae67-d27b-4c81-92e3-f1e6ae787c51 Czech Republic
32c263b5-83b1-406b-8fbf-6085f6c0c712 Netherlands
b316ffc0-a55e-4e00-b996-2b27bba45763 Poland
1dfd7130-5f2d-4c79-a08a-e02849284afa Hungary
cf6cab07-5acb-4076-9de1-1bbf7bed7884 Spain
8d8fe11d-314d-48e6-9b95-e22410505049 Belgium
eb27b33b-7df0-40ff-b238-969c64b16cb3 Hungary
45f77f64-a26b-42e3-91e8-815d3e34ea23 France
572df679-6bca-49ac-98dd-1d77066a1b59 Bulgaria
f38cc667-2d91-40c4-a294-08d6942ca233 Poland
66551bec-2923-41dd-9cea-4446dfdbb7cd Sweden
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada9BSREHAC000A000000XX
EAN8015644065331
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width407 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight55 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644065331
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 2000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss176 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 900V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4888
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104453R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1250 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 1250 A
Adjustment range short-term delayed short-circuit release (EF007129) 12500 A
Adjustment range undelayed short-circuit release (EF007131) 1875.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
