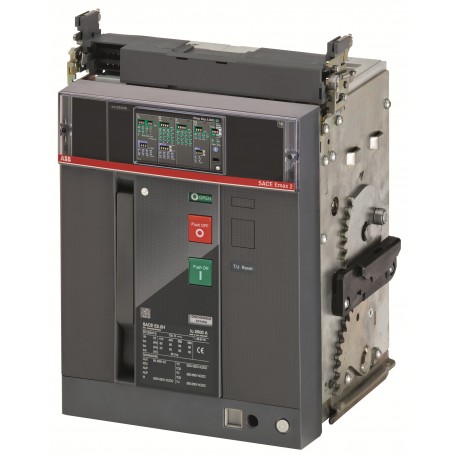

ABB 1SDA104447R1 1SDA104447R1 ABB E2.2S/E9 2500 Ekip Dip LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104447R1 ABB E2.2S/E9 2500 Ekip Dip LSI 3p WMP

1SDA104447R1

104447

ABB

1 Pcs.

E2.2S/E9 2500 Ekip Dip LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP392d11bc-ea00-4470-a8e2-ef286e1cd679 Italy
Simplified SCIP19abea24-c916-44ba-8e0e-79804e100dc0 Germany
1bcf1e1c-f2a9-4a00-878a-7e228294056d Sweden
0a4a95ca-4567-4a51-9dbd-414ae691d24b Bulgaria
a964d31c-237b-4a4d-9733-357020c703c2 Germany
ed86f6a9-bf2b-44ad-972a-98f55d374712 Poland
075e7e6d-32b0-4f43-824f-64db604b3baa Poland
d9b81704-1272-4bfb-a68e-c10f4a421262 Denmark
2c28a55e-3e19-4920-a97a-02389daa5e2f Greece
fba40e58-4eec-4628-9908-b9b39bdf495f Hungary
0e91d81b-1bca-446d-acf9-9e66db4e3c23 Estonia
20023272-9cb5-48d2-b74b-5b5a0eeea3bb Portugal
20169c71-9e93-44cd-941c-a147f832c72e Belgium
756b2261-fd49-48b8-b3de-de19234b39d1 Finland
12362612-e3c2-49f8-b24b-b049b30a64a0 France
f4e63b37-9e4a-4a7e-a538-7da7c85d6e8c Norway
98806324-683c-4170-9732-e1e1db2715f0 Belgium
e04d4ad4-60af-4c03-b277-de33f4f52ac2 Spain
343d35a8-1f64-4627-a293-b35821e0b0f6 Hungary
9ba6d003-8dec-4489-a2b4-4c4b78074af7 France
1b20b1f2-b16d-4366-8376-24d2ff3fcc67 Germany
d6409506-6328-4d43-bd94-dd0ac61155a1 Netherlands
da1749e2-0e83-43af-a56b-15241fd36e9d Germany
8dae1883-94be-4a4c-9cef-188251469ac1 Poland
607d37f3-4394-4889-9844-72020c7e0808 Sweden
8a45e319-c760-4df6-887c-f560e5dbc593 Croatia
461354a7-40e3-4a74-8afd-1ab2fd84fbe6 Czech Republic
a42052c8-9006-4790-b804-411b0f313db6 Germany
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada92SUELAB000A000000XX
EAN8015644065270
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width317 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight48 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight64 kg
Package Level 1 EAN8015644065270
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 2000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss550 W
Rated Current (In)2500 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 50 kA
(900 V AC) 50 kA
Rated Uninterrupted Current (Iu)2500 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 900V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4888
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
