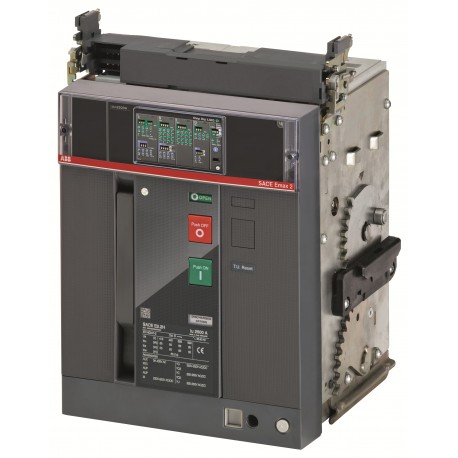

1SDA104437R1 ABB E2.2S/E9 1250 Ekip Dip LSI 3p WMP
1SDA104437R1
104437
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA104437R1 air circuit breaker is designed to manage and protect heavy electrical grids from current overloads and short circuits. Such withdrawable units offer reliable circuit isolation for maintenance within large industrial facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108471A0821
- Extended Product Lifetime: Lifetime Extension Services are Offered
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 91612d35-f6bb-4ab7-a0c0-1838d592dca0 Italy
- Simplified SCIP: 58ccc6eb-ba4e-4cf8-840b-59eb5402c86c Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: 92SREHAB000A000000XX
- EAN: 8056221026284
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 91612d35-f6bb-4ab7-a0c0-1838d592dca0 Italy |
| Simplified SCIP | 58ccc6eb-ba4e-4cf8-840b-59eb5402c86c Germany |
| 33b538a4-b5fa-4269-844b-8b44ed468761 Germany | |
| b7a5b976-e457-48bb-a2a3-793782a78c52 Hungary | |
| 91c341c3-d5ec-46fd-ac1f-7ce5395e7150 France | |
| 2f57b36c-71ae-4d1c-812e-78b857f7406a Belgium | |
| f3cab02c-586a-496b-80b6-d8aac4b1e9a8 Sweden | |
| 31c35e12-67cb-4ee9-b7a2-a102b049e597 Poland | |
| 8646171f-ce0b-462c-bf3f-7c100f0453eb Portugal | |
| f753d192-9feb-421b-8f88-7ffb7846291a Bulgaria | |
| 5a90714b-df3d-4628-b896-068979abc240 Sweden | |
| 06ae3b52-070d-4451-884d-fd01d4d680b2 Hungary | |
| 767f649f-181f-48cb-86aa-0f5f6dbd1c91 Estonia | |
| 5b3036db-e274-43a5-9bf8-e78403767c71 Greece | |
| f5152dd8-cc05-4fd6-b6d2-fdc0ab7c9e91 Germany | |
| 4f6ac9ed-b995-4ac7-9cda-10a7d986670a Poland | |
| 9eeb92fe-9fe8-435d-b45e-1d4a44ce03ba Denmark | |
| 6681c902-151c-4efa-9ead-f83d67149073 Finland | |
| 91553d32-19ac-4025-bbd5-3ddab4d2926c Norway | |
| 21230d90-ae82-4205-8087-6ebb80a9ef3e France | |
| 1c7aba53-f96b-4016-89b6-767b2ff2cf50 Croatia | |
| abd23c38-ab32-410e-9057-2a1619c27f5b Spain | |
| 9709728d-a563-4bed-a1ec-1693d86f3475 Netherlands | |
| bc638d2f-531b-4aae-ac4c-5ca54228ebbc Belgium | |
| 6ce70c54-9233-4dee-b6fc-fc077b239f4d Germany | |
| 38c976f6-4934-4e7a-a073-7dae6b7a9288 Czech Republic | |
| a1e8486e-9d26-498d-90f5-5e9acc8f672e Poland | |
| bba0d3d8-972d-4a96-ba0a-0e6eb1267de0 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 92SREHAB000A000000XX |
| EAN | 8056221026284 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 48 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8056221026284 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 176 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
