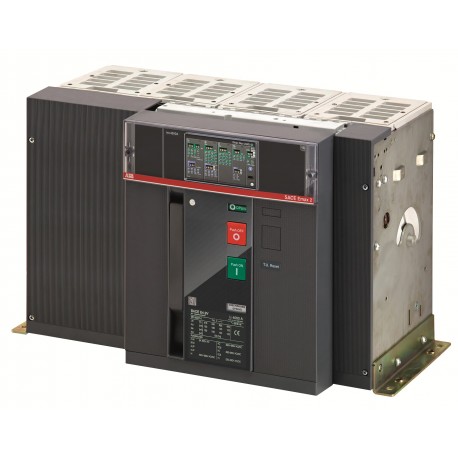

ABB 1SDA104412R1 1SDA104412R1 ABB E4.2H/E9 4000 Ekip Dip LSI 4p FHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104412R1 ABB E4.2H/E9 4000 Ekip Dip LSI 4p FHR

1SDA104412R1

104412

ABB

1 Pcs.

E4.2H/E9 4000 Ekip Dip LSI 4p FHR

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPaccaadbb-2518-4781-b66b-5eabb3283e80 Italy
Simplified SCIP70c5ac2a-7c6c-4761-8816-de04ab3a4cd6 Germany
1e824cbe-a173-41ce-8187-0483f6cda4a4 France
2e45cc9a-7161-4f1d-b73c-adbb48453e85 Czech Republic
60a4d292-a5f0-4cbe-84f6-05125184b20c Poland
7ad3c1ac-5e95-4275-9ef3-eb3c018b0746 Norway
15132c05-a9f6-463c-be41-0d20c3f9264a Hungary
7f221e64-7b6a-415f-a9a9-2a9c00dcd4af Finland
afea9d4f-57aa-4923-8669-287398e687c0 Poland
81783f39-1844-497c-8f77-2809b86995e8 France
440f4413-2b9f-489e-aec1-d5c6a79fd8d0 Poland
63ff5e03-cd9b-4761-85aa-326b879d824b Germany
0853c57e-b077-42c8-abeb-4977a87a0bbe Sweden
796b1af3-2fe4-49ff-a69f-92b336068ea9 Belgium
37c64016-4e75-43da-aefd-3d0cb4cd92c6 Estonia
b23862da-3797-4490-8c5c-2de8468ea95d Germany
06f187b3-96d2-4daf-a22c-56524033f1b3 Germany
1b02973d-e6b1-4b43-90b5-6c9f7f81ab5e Denmark
611c82a4-04fa-46e4-b8a0-2eb8c63728b7 Germany
77accac1-0209-464d-93e2-e492c472aefc Belgium
4b8c816d-e121-402a-afdf-21b08f87bf08 Spain
2eab2979-9303-4a6f-add1-06e0d77e3bd0 Hungary
54098933-9d7f-4df3-beaa-2926e7888872 Portugal
93071b9d-33ff-43ff-9e69-28f31a700200 Greece
6c9073aa-fc1a-4d4f-8d7f-2ed314874af0 Bulgaria
ab5b556d-7428-4258-adc1-71661cc0c47d Sweden
519f4473-c51f-4545-9568-bddf7ef35767 Netherlands
0bdc9472-505f-40bf-8ef0-39b488c378f8 Croatia
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada9CHWERBB000A000000XX
EAN8015644064921
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight70 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight81 kg
Package Level 1 EAN8015644064921
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss465 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 90 kA
(900 V AC) 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104412R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 4000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 1600.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 2400.0 A
Adjustment range undelayed short-circuit release (EF007131) 6000.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Back
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
