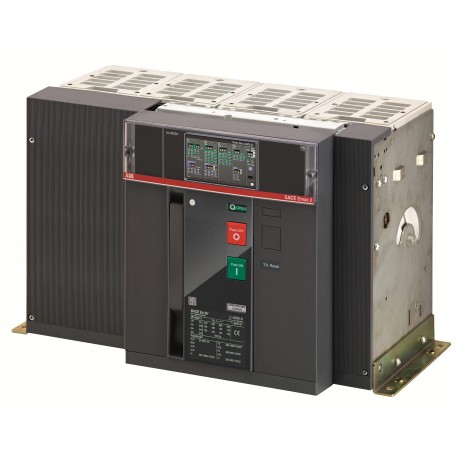

ABB 1SDA104387R1 1SDA104387R1 ABB E4.2S/E9 3200 Ekip Dip LSI 4p FHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104387R1 ABB E4.2S/E9 3200 Ekip Dip LSI 4p FHR

1SDA104387R1

104387

ABB

1 Pcs.

E4.2S/E9 3200 Ekip Dip LSI 4p FHR

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP6455cc15-c990-4219-8af6-c60e8acf84e3 Italy
Simplified SCIP7fb01837-f6ea-400b-9118-ad1e6c955a48 Greece
ceccf821-04a4-43ca-bffb-c05a82827bad Portugal
0378103b-f67f-4748-b4f1-25a7ff849437 Poland
94d7a81b-04ea-419f-8b73-06eac77e34f5 Poland
d3a83d5a-ddb8-4325-b6bc-1cc81676e43d Hungary
960105ed-95f3-46b5-94be-26cf4af1f30e Germany
4a1a4bd9-809d-418e-9335-1109a7588500 Germany
ce0a4b0d-aa53-4784-b635-8304a4749fed Spain
bad89d7a-dfd3-4838-b9ef-d91a6eeac3b7 Belgium
a24e0935-aebc-4dc5-90b2-5075f11a7953 Sweden
a96d3681-29e4-4908-907e-4ed0a1567324 France
a9d786f9-27c2-41a4-bb00-0ef0d7e0ebdb Poland
37f57f49-2cea-4dc6-9757-366be3a6ebbb Bulgaria
0378103b-f67f-4748-b4f1-25a7ff849437 Poland
fed49a7f-218d-45c3-a9ff-bd8467f4337b Estonia
beed40c2-4f23-4bfc-a44c-7fd9eaad2b51 France
7acc3bba-d2c8-400e-a125-ed09d1c5438e Sweden
df3f052c-25fc-42d4-b1b4-6d9bf5cee4d1 Hungary
8cbe2f67-7c39-4b4c-91ea-68c8ad82fe79 Netherlands
d2650e0d-1091-403d-a191-feeb17d3755d Czech Republic
d3a83d5a-ddb8-4325-b6bc-1cc81676e43d Hungary
beed40c2-4f23-4bfc-a44c-7fd9eaad2b51 France
27f54109-0d55-4724-ad12-b6483c683672 Denmark
37f57f49-2cea-4dc6-9757-366be3a6ebbb Bulgaria
c6402da4-4e99-4b69-b7df-c144f6936f7f Germany
a0080c80-90a2-430c-8738-1cf7ccaff10f Norway
67dd64c3-3ba7-4743-837a-2aa272534e57 Belgium
bad89d7a-dfd3-4838-b9ef-d91a6eeac3b7 Belgium
cebf1185-b905-4374-bcf6-bb2a56b4d437 Germany
a24e0935-aebc-4dc5-90b2-5075f11a7953 Sweden
a9d786f9-27c2-41a4-bb00-0ef0d7e0ebdb Poland
d2650e0d-1091-403d-a191-feeb17d3755d Czech Republic
459bad02-6b61-42c6-b515-d975288f8cd1 Germany
1ce252dc-53f2-4dd7-833a-9ae4e363ccfe Finland
67dd64c3-3ba7-4743-837a-2aa272534e57 Belgium
c6402da4-4e99-4b69-b7df-c144f6936f7f Germany
1ce252dc-53f2-4dd7-833a-9ae4e363ccfe Finland
a96d3681-29e4-4908-907e-4ed0a1567324 France
ceccf821-04a4-43ca-bffb-c05a82827bad Portugal
459bad02-6b61-42c6-b515-d975288f8cd1 Germany
7fb01837-f6ea-400b-9118-ad1e6c955a48 Greece
a0080c80-90a2-430c-8738-1cf7ccaff10f Norway
6dcf048f-431f-4eff-9985-5ff90a72197f Croatia
cebf1185-b905-4374-bcf6-bb2a56b4d437 Germany
27f54109-0d55-4724-ad12-b6483c683672 Denmark
94d7a81b-04ea-419f-8b73-06eac77e34f5 Poland
4a1a4bd9-809d-418e-9335-1109a7588500 Germany
df3f052c-25fc-42d4-b1b4-6d9bf5cee4d1 Hungary
6dcf048f-431f-4eff-9985-5ff90a72197f Croatia
7acc3bba-d2c8-400e-a125-ed09d1c5438e Sweden
960105ed-95f3-46b5-94be-26cf4af1f30e Germany
8cbe2f67-7c39-4b4c-91ea-68c8ad82fe79 Netherlands
ce0a4b0d-aa53-4784-b635-8304a4749fed Spain
fed49a7f-218d-45c3-a9ff-bd8467f4337b Estonia
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada9CSVENBB000A000000XX
EAN8015644064679
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight70 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight72 kg
Package Level 1 EAN8015644064679
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss425 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSI
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
