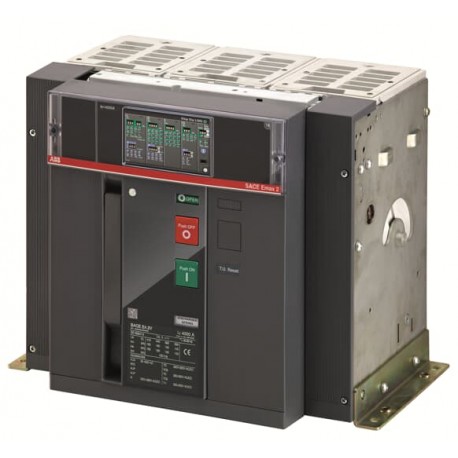

ABB 1SDA104383R1 1SDA104383R1 ABB E4.2S/E9 4000 Ekip Dip LSIG 3p FHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104383R1 ABB E4.2S/E9 4000 Ekip Dip LSIG 3p FHR

1SDA104383R1

104383

ABB

1 Pcs.

E4.2S/E9 4000 Ekip Dip LSIG 3p FHR

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108471A0821
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP55b9c610-efe3-4aa5-a2b5-a2f513f40aac Italy
Simplified SCIPffbf01b3-f460-457b-b180-9c20fb39bff7 Germany
4970dfdf-cfea-429a-86c9-8813bfa28f8d Spain
3fbfeb7a-9916-4e28-ae6e-733dfba5a01e Hungary
c8a8e15d-1eb2-4dbe-a544-640ea663708a France
d9b42259-69e2-42a7-8e66-4295e7afd1a9 Croatia
2681f830-ad89-4e93-b90f-82cced61417e Bulgaria
fa065cc7-e039-443c-97a1-3f51bbd88e66 Belgium
3cee2df0-d779-4145-b514-4a2c8b63be51 Norway
113c89bc-dcdc-44e4-9b47-abbce202f793 Poland
70dc55c6-5215-4ceb-898f-0df054644219 Poland
5de16982-6732-440b-8af0-cf0f1fa82e59 Czech Republic
e00fb025-f247-43e7-a421-01481d0a6b5f Hungary
e19ff6af-a6a6-4e83-889b-122703ea5c63 Netherlands
56aee5d4-c1d5-4fca-b211-a506c58213d4 Poland
616416ed-0715-4e79-80c0-10efc9d1d5ea Finland
ef4e3364-a965-4639-b38d-6cf39e223a15 France
7eb8180d-539e-4180-9d1a-f9cdab97efab Sweden
a0217d94-405c-4cef-8a78-fa656593b6b0 Belgium
777b5176-f88b-43eb-8dba-59715f2cd8a0 Estonia
cb6d5dae-05c7-4099-aeff-ff64286ab84c Germany
9cdff383-ae24-4bc4-b7c9-2cd6e5c53a66 Germany
ec1d9515-e324-402b-b466-7ae24ef5cc35 Denmark
ab090d52-b858-400d-8853-b4d8408acc3e Germany
5f877bc8-3755-4c2c-ab38-e807c585b0dd Germany
d5e15bda-62cb-454a-a1c4-471f634e5e7c Portugal
144f9d1f-afc1-44f1-a66f-7e3e79d5231b Sweden
0a7f4257-0e93-4914-a076-5b46941d5651 Greece
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada94SWERBC000A000000XX
EAN8015644064631
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width384 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight56 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight81 kg
Package Level 1 EAN8015644064631
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 1000 cycle
10 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Power Loss465 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksNo
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4889
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104383R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 4000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 1600.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 2400.0 A
Adjustment range undelayed short-circuit release (EF007131) 6000.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Back
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
