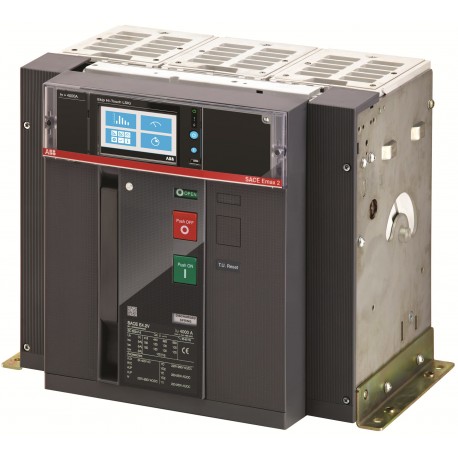

1SDA104379R1 ABB E4.2S/E9 3200 Ekip Touch LSIG 3p FHR
1SDA104379R1
104379
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SDA104379R1 ABB E4.2S/E9 3200 Ekip Touch LSIG 3p FHR is an advanced air circuit breaker engineered to provide comprehensive protection and control for high-current electrical distribution systems. These components are typically installed within primary industrial switchboards to manage heavy electrical loads and quickly interrupt fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108471A0821
- Extended Product Lifetime: Lifetime Extension Services are Offered
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 38a4ebf0-32c1-4994-a838-cf1402e9016d Italy
- Simplified SCIP: b316bc6c-9e51-4e7d-963f-a6486655d13c Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: 94SVENBF000A000000XX
- EAN: 8015644064594
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 38a4ebf0-32c1-4994-a838-cf1402e9016d Italy |
| Simplified SCIP | b316bc6c-9e51-4e7d-963f-a6486655d13c Germany |
| 8cec9de5-f435-42dc-a6da-a0f35320a1fa France | |
| a2836fb8-1700-45d9-afd7-db17f0dfd720 Spain | |
| b37a3662-ebfa-4424-b0b0-adf602a23138 Belgium | |
| fed08a87-ee59-4b1a-b047-d0736ec630d0 Hungary | |
| 533d9c74-c3b1-4538-9966-3af7771bbd53 Netherlands | |
| c3ee527c-b7ce-40be-baae-046d9d408a00 Poland | |
| 55b76718-0d39-4be1-97e1-3d9b9ed9739f Czech Republic | |
| 51e37843-56f7-4a8e-a79c-9bbd2693f629 Poland | |
| e732b6c9-bb19-4e76-9a00-25f0f6d891ee Germany | |
| 2e5015ff-4bbc-4796-b8a4-3f188418a09d Estonia | |
| 86c43dc8-4e28-4e0f-995c-e62529a28633 Germany | |
| eec71833-08d9-4b8f-b8e0-d63612ecf74a Germany | |
| bd00e75e-d0da-4c42-8b11-8e9f3d0138e4 Germany | |
| abddfd11-0854-4229-99a1-2819b30fa1aa Denmark | |
| 9d8fb1a3-c8ad-4732-bd30-aa05246eb12c Sweden | |
| 72baecb2-6d6e-48d7-bc71-e8eeba1b7eec Belgium | |
| 0b2a1c12-abaa-4e20-ba0c-cbfa49c30bf5 Finland | |
| f2d778f7-8853-4725-9be2-3eecd7da9dc8 Poland | |
| cbaa7960-85f1-4fa5-a531-b9156c1ec780 Norway | |
| c08d0c6d-92e5-4533-97bb-81cb778b2767 Hungary | |
| aded8f03-6fb6-4387-9cc4-3022df31f6f8 France | |
| a3342bbe-6ac0-4846-bce7-830eb257fd34 Greece | |
| 68bb87e2-24a3-4235-ab3f-cf3453364fbc Bulgaria | |
| b8005a4e-e716-4268-b134-d51b641a8763 Sweden | |
| 619421d2-f113-40a4-93b1-c5075f3c10ab Portugal | |
| 160235ae-3054-4d6a-b15b-0d1417d5d1f8 Croatia | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 94SVENBF000A000000XX |
| EAN | 8015644064594 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644064594 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 1000 cycle |
| 10 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 65 kA |
| (900 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Touch LSIG |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | No |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4889 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
