ABB 1SDA104353R1 1SDA104353R1 ABB E2.2H/E9 2000 Ekip Dip LSIG 3p FHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

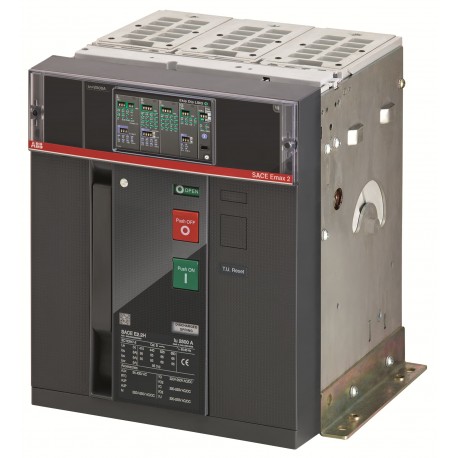

1SDA104353R1 ABB E2.2H/E9 2000 Ekip Dip LSIG 3p FHR

1SDA104353R1

104353

ABB

1 Pcs.

E2.2H/E9 2000 Ekip Dip LSIG 3p FHR

Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2361
Environmental Product Declaration - EPD9AKK108471A0821
Extended Product LifetimeLifetime Extension Services are Offered
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP3e8a1c4c-32a5-45b6-bdf2-9ab31ddb7026 China
Simplified SCIPfb3023d5-76ae-4457-acd3-01fae8e2f59e Czech Republic
1e33b48a-0aa3-46f7-a8cd-bdf4959e2555 Germany
89b1ba5a-c24c-4fc4-b81b-e71554f1f812 Belgium
07acaf0b-1037-43a4-b1f2-4bbfd00c7a82 Finland
7a6b4126-6372-4c4d-80b7-ce78b93cfca7 Germany
2ae6257a-19cc-4b46-b4a8-bd1c6d0cb96d Germany
ec6144e6-4f06-4616-ab5b-f897eb9ca434 France
1c345975-c910-4276-8477-780f846b7ae2 Germany
19eab72e-8be0-4357-b9b9-7c50898cb5f6 Spain
727aff2f-9c93-4d5a-8e9c-2bbce35a98e3 France
2cf6c16d-85ba-4334-8d81-265f4d14eb15 Poland
84358c3f-e69c-4649-afcb-729b63d7b7a2 Sweden
96fe9dc9-c68c-4d7d-a8a8-8d4d5970069b Denmark
47fac03d-252d-41fb-a0e5-b1cf8f8d168f Norway
73f4e3ec-bda4-446e-8d52-43718db9c2c1 Belgium
e97fc573-ed52-4a67-9409-6035fb08a89a Hungary
06d3b5a9-e248-49b8-80cf-2b1910d83f6e Croatia
e57c886a-57cf-406d-a452-0f1fdc3778fa Greece
f18e60ed-9543-40d1-91ec-5065c229d252 Germany
4b7fab14-cf89-4ccd-9edd-94f8209fca7f Bulgaria
b1395d34-4885-4ebd-86c8-0ab87c10e58f Estonia
d96e5700-bf75-410b-b605-4a304d554391 Poland
8e91f775-c77c-4533-8483-63610415da7e Hungary
b359f1c9-6f82-44c0-857e-7003874aec43 Portugal
817f147f-73cf-48e6-b992-51b98528e090 Sweden
e9190b91-7a3a-433e-8f10-5ba2d1e39d29 Poland
9c4b1896-52b6-47cf-8c6b-7fcbf484f641 Netherlands
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and Canada92HTEKBC000A000000XX
EAN8015644064334
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width276 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight41 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight53 kg
Package Level 1 EAN8015644064334
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe = 900 V 2000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss212 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage900 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(800 V AC) 65 kA
(900 V AC) 65 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)900 V
ReleaseEkip Dip LSIG
Release TypeEL
RemarksE9
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE2.2
Suitable for IT NetworksYes, 900V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK107680A4888
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA104353R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 2000 A
Rated voltage (EF003977) 900 V
Overload release current setting (EF002336) 2000 A
Adjustment range short-term delayed short-circuit release (EF007129) 1200.0 A
Adjustment range undelayed short-circuit release (EF007131) 3000.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Back
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
