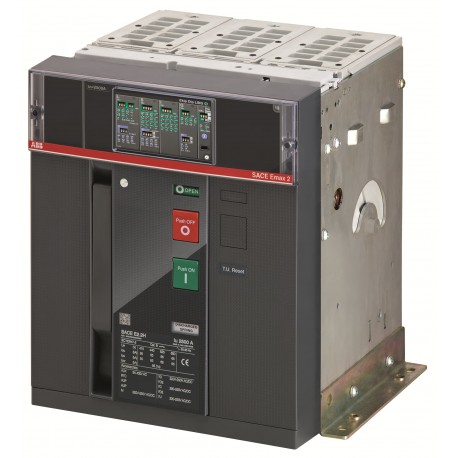

1SDA104323R1 ABB E2.2S/E9 2000 Ekip Dip LSIG 3p FHR
1SDA104323R1
104323
ABB
1 Pcs.
E2.2S/E9 2000 Ekip Dip LSIG 3p FHR
Automation > Power circuit-breaker for trafo/generator/installation protection
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SDA104323R1 air circuit breaker manages high-current electrical installations, offering dependable protection against overloads and short circuits. These units are commonly installed in primary industrial switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2361
- Environmental Product Declaration - EPD: 9AKK108471A0821
- Extended Product Lifetime: Lifetime Extension Services are Offered
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 9adc7f19-1ffd-4c8d-9d8e-17aecf675d11 Italy
- Simplified SCIP: 4ba18d50-a4f0-4b7c-ad32-e2e8d2ff36f3 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: 92STEKBC000A000000XX
- EAN: 8056221026123
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2361 |
| Environmental Product Declaration - EPD | 9AKK108471A0821 |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9adc7f19-1ffd-4c8d-9d8e-17aecf675d11 Italy |
| Simplified SCIP | 4ba18d50-a4f0-4b7c-ad32-e2e8d2ff36f3 Germany |
| 5cd22150-3184-4bdb-bebf-20a801082466 Croatia | |
| a7b2bc79-89fd-4b69-bf84-962359f829b1 Poland | |
| efd636ba-5379-483e-9fbe-cca648a9d52d Netherlands | |
| eea2e946-68da-44bd-ac34-f09066c0f3cd Germany | |
| edaca01a-0b68-47b8-bebb-7fc9aac251d5 Germany | |
| a3eb7276-4e7e-4140-97cd-edd929ddb139 Estonia | |
| 3225be3d-4c9a-4fb6-b9b8-a95d53ec2220 France | |
| b836f773-8b31-4de7-86d6-7c617b4fc7ca France | |
| 6c136360-88b6-482f-a8ba-76b96c3677ff Poland | |
| 0655f978-df93-4f25-836c-c75b6124c1ba Norway | |
| 2106564d-f4ba-4846-bc74-f1ef99b31f40 Hungary | |
| 3e8acad9-1904-4b62-9c5d-d0c2cdcdd373 Finland | |
| af89912a-b669-42ff-820f-eec83c536ad2 Germany | |
| 8beb6ee2-4792-4cb7-a33a-63f7c82c9ce5 Denmark | |
| 35d7325e-9dd5-457a-af15-914b8799f06c Germany | |
| 482f219c-57ad-467b-a13a-0365350a2221 Belgium | |
| 46d1d997-2f3f-41c7-b94c-5ad474a6d299 Sweden | |
| 63876850-1ac6-49a2-aa3a-fb51dd2db9bd Greece | |
| 23decc39-c697-45c9-9d8c-33439a8919d5 Portugal | |
| 7d7d11d6-c6b4-472a-ab42-edb1b56d93f0 Sweden | |
| 6d01276e-43e3-4b79-8ce3-fa2b93b642f5 Bulgaria | |
| 9d31ada5-55af-419a-802c-6f11ea8ba8d9 Hungary | |
| 81a9c766-18d4-4b50-b87c-21c0252cc6f2 Spain | |
| 81af8584-a5bd-4e29-8865-734f3f25f591 Belgium | |
| 9ceb3681-e78c-49ba-bbac-fcd7c2e97a6c Poland | |
| b8a4cac7-6d42-405f-a39c-8408727e34c2 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | 92STEKBC000A000000XX |
| EAN | 8056221026123 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 53 kg |
| Package Level 1 EAN | 8056221026123 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 900 V 2000 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 212 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 900 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (800 V AC) 50 kA |
| (900 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 900 V |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Remarks | E9 |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2.2 |
| Suitable for IT Networks | Yes, 900V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK107680A4888 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
