View larger
Images are for illustrative purposes only. Please refer to data sheet for details

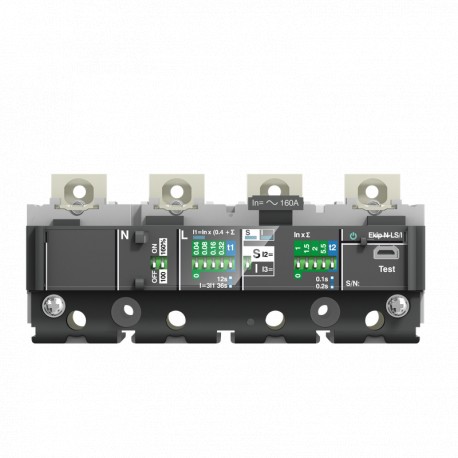

1SDA102200R1 ABB Ekip Dip LSIG In 60A XT2 4p UL/CSA
1SDA102200R1
1SDA102200R1
ABB
1 Pcs.
Ekip Dip LSIG In=60A XT2 4p UL/CSA
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Statement | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Order | |
| Ean | 8015644027117 |
| Minimum order quantity | 1 piece(s) |
| Customs tariff code | 85389099 |
| dimensions | |
| Product Net Weight | 1 kg |
| Packaging information | |
| Packaging Unit Level 1 | Box 1 piece(s) |
| Packaging width level 1 | 110 mm |
| Packaging height level 1 | 100 mm |
| Packaging depth level 1 | 150 mm |
| Gross Packaging Weight Level 1 | 1.1 kg |
| EAN packaging level 1 | 8015644027117 |
| Additional information | |
| Type of switch to pair | Power Distribution |
| Main Product Type | Accessories for Tmax XT |
| Product name | Accessories |
| Product type | Accessories |
| Suitable for | XT2 |
| Suitable for product class | SACE Tmax XT |
| Technical data | |
| Configuration Type | Loose or configurable |
| Current Type | Ac |
| Number of poles | 4P |
| Rated current (IN) | 60 A |
| Uncoupling | Ekip Dip LSIG |
| Release type | EL |
| Reference standards | UL |
| Certificates and declarations (document number) | |
| Sheet | 1SDC210200D0206 |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and manuals | 1SDH000721R0510 |
| 1SDH000721R0505 | |
| External classifications and standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Item Classification Code | Q |
| WEEE Category | 5. Small equipment (no external size greater than 50cm) |
