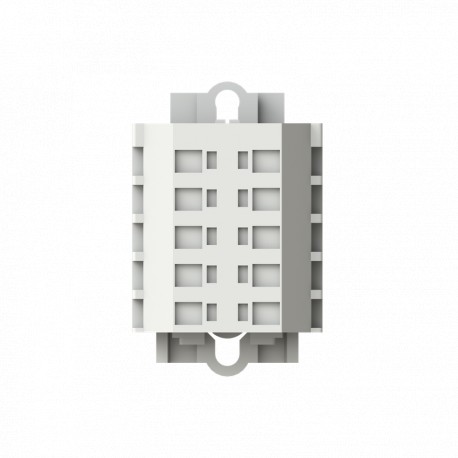

1SDA101976R1 ABB DIN RAIL TERMINAL BLOCK 5 POSITIONS
1SDA101976R1
101976
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SDA101976R1 DIN RAIL TERMINAL BLOCK 5 POSITIONS organizes and secures multi-wire connection points onto standard control panel rails. Panel builders utilize these modular terminal blocks to distribute control signals cleanly throughout complex automation systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXTGTB5
- E-Number (Norway): 4381671
- EAN: 8056221020206
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.3 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 120 mm
- Package Level 1 Height: 160 mm
- Package Level 1 Depth / Length: 190 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXTGTB5 |
| E-Number (Norway) | 4381671 |
| EAN | 8056221020206 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8056221020206 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT2, XT4, XT5 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1611 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 4547 >> Terminal blocks |
| UNSPSC | 39121410 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
