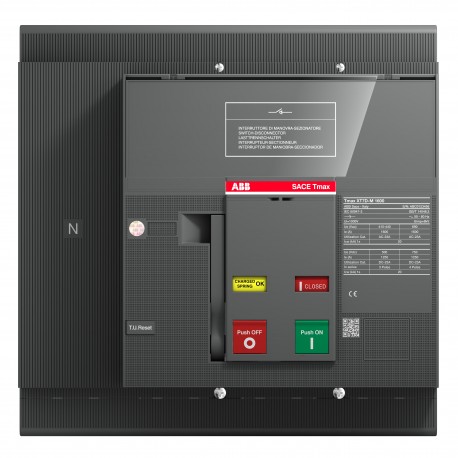

1SDA101916R1 ABB XT7D M 1250 4p F F
1SDA101916R1
101916
ABB
1 Pcs.
XT7D M 1250 4p F F
Connectors > Switch disconnector
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3e4cd490-d232-4fb8-84f2-588197491ed7 Italy |
| Simplified SCIP | ea2e19ac-9dc4-4b96-944e-73f70efd7a4c Belgium |
| 5045eb5b-f1c5-4824-96bf-319ffbff3ab8 Spain | |
| 49b69ebf-21de-41a7-891e-f242eae8dd83 Hungary | |
| 4330bd90-f0bb-4738-845f-bfe15f2817dc France | |
| b25b72e4-9f68-4e0a-8d9f-67541a0a7590 Croatia | |
| edfba680-aa14-4206-9b63-389a7e6836c0 Germany | |
| ac8ce594-306a-412d-904c-55a8ca0ab40a Germany | |
| 4cb998cb-58fd-4b09-9d52-a97081a55ab8 Sweden | |
| 9f278386-46e2-4c8b-aaac-693511e23484 Estonia | |
| 5e8f1b3e-53a7-4eba-8234-4f5933ac7b3d Germany | |
| d354eb5b-9c61-4ba2-89b1-79ff2724271c Poland | |
| 3f119dae-f8e2-4a6c-bc06-845fd7fbd727 Belgium | |
| 1954c5df-184f-4125-a567-cba35600cace Finland | |
| 94c9517d-4a7b-4ea5-af86-9e6cb06eeed1 Hungary | |
| 7e019a39-2513-4993-b0cb-f40de6158d80 Netherlands | |
| 100d3e48-8abb-4257-861e-edbc64ad8edf Denmark | |
| 3a494be0-9b1a-4750-9ccb-376de079c8d1 Germany | |
| 56cdad14-7dde-482d-a515-1b6a471928e6 Portugal | |
| 679ea330-9d19-4fd0-b582-ceb3a73a48cd Greece | |
| d1384bff-464b-41aa-9b4f-84731c65fb4f France | |
| 2662a44d-8545-46b6-bdaa-08de3451dec8 Poland | |
| 26adf68a-b1c2-4654-9b3f-d65eabeb542a Bulgaria | |
| 43521ef9-a3cb-4206-9456-d808cc1b727e Norway | |
| e61eef89-6ae0-4487-88af-5e6a0a3fcf56 Sweden | |
| 761e59fb-1698-4492-92db-86e7c1c1e74a Poland | |
| 12f90416-bed6-4dd3-a272-8e07be91d220 Czech Republic | |
| 8c618152-86e7-4ff3-af3a-20a36bc0f0aa Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDEKSFAZZAAAA00000 |
| E-Number (Norway) | 4380961 |
| EAN | 8056221019606 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221019606 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1437 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1250 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
