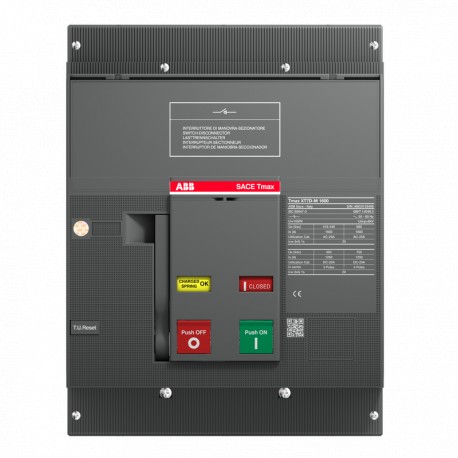

1SDA101913R1 ABB XT7D M 1250 3p F F
1SDA101913R1
101913
ABB
1 Pcs.
XT7D M 1250 3p F F
Connectors > Switch disconnector
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2358 |
| Environmental Product Declaration - EPD | 9AKK108468A1896 |
| 9AKK108468A4411 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8d7b62e2-a392-4124-a68a-060d18ca91af Italy |
| Simplified SCIP | 2f32da7c-4640-4e17-b2ad-e28294c842e4 Estonia |
| e0e86db0-e4c5-4a53-98a4-6b59a9798062 Germany | |
| 801d3042-dcfd-4ed5-ba59-742398398fe4 Denmark | |
| 7a2c620a-beb2-4346-b229-d6994747734c Sweden | |
| df29c135-7784-44df-9350-6125b2125b3f Germany | |
| 2d920107-454d-4424-ac39-3a63044facd0 Croatia | |
| 49e46898-12ff-4548-b896-b2ac5804a9ba Germany | |
| 8bf055bd-4f10-4733-aaef-c09e086fc06f Spain | |
| 82f16d8b-cd81-4484-9bd8-dec60dfc36f5 Belgium | |
| a78fd79d-154a-4ef4-9440-a3d5c92ed617 France | |
| 4f2c6262-99ca-4de4-aa73-10b6bd06551d Hungary | |
| eb0e6d1a-4732-44c1-8d71-0ee81a5f4340 Bulgaria | |
| a080caa4-e932-43bd-a812-bb52fe861723 Norway | |
| db0638d7-5be7-42a7-b4af-d227652e5afd Netherlands | |
| c25310f1-d0ef-4d5c-8774-5e2a6d047d8a Sweden | |
| 1741a41a-5ed5-43d7-86a9-4d359b91caf6 Poland | |
| 305a4ebc-1c1f-4164-b2f5-942a243d374e Germany | |
| fa480402-8076-47d8-8d7b-72cc1879c295 Czech Republic | |
| ed07f8f8-b802-4ba3-9e95-d55af7a1998b Poland | |
| 08fb1fa0-a711-4b89-aa93-5e5cdb3c5e39 Belgium | |
| 40166c79-4dd1-4805-b5b2-2ce127819e34 Poland | |
| 394e0701-4b33-4eeb-9da0-16de435c971f Hungary | |
| 0eb3a18c-11c7-448c-bf0b-de58909e61b7 Finland | |
| c366fe15-62a1-476a-8546-ecf0b2da40c9 France | |
| 019975b5-7f36-4263-83f9-a43e7f90e971 Germany | |
| e42ac003-ea84-44f6-8c83-7a6c51a2abf9 Greece | |
| b218f0a2-fd8b-4a30-a00d-c3f24b931343 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XDEJSFAZZAAAA00000 |
| E-Number (Norway) | 4380811 |
| EAN | 8056221019576 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Package Level 1 EAN | 8056221019576 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1337 |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1102 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1250 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
