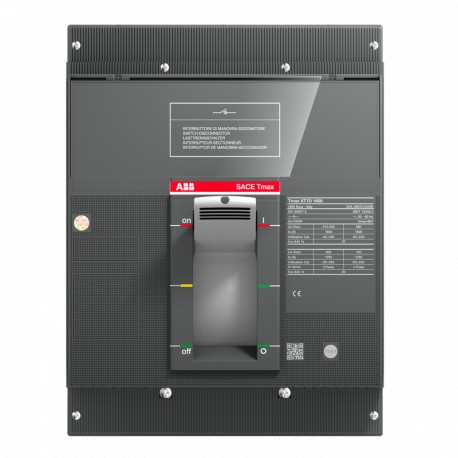

1SDA101907R1 ABB XT7D 1250 3p F F
1SDA101907R1
101907
ABB
1 Pcs.
XT7D 1250 3p F F
Connectors > Switch disconnector
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f2eff839-04f7-4ca7-bf43-e912aff665cb Italy |
| Simplified SCIP | c8ac6329-a9ce-4659-968e-b3b032505ba4 Belgium |
| 85c0243c-c4f6-495a-bf4d-929a436ce5c2 Greece | |
| aa863a4b-6d3e-48b8-b4c7-b041d51c6b0c Belgium | |
| 1247db0c-6f6d-4e44-9d2e-0543c24e29dd Spain | |
| 698e6d79-b365-43b6-8eab-d88652475bee Czech Republic | |
| 64a05d8d-4e46-4ff3-82a6-00ae500410e9 Germany | |
| 7f9da1b5-c058-4c7e-b654-5275881febc3 Hungary | |
| 00add347-da2f-4f28-bfa2-79c09a6c6e2c France | |
| 1ea48b00-3971-4545-afcc-542dcdc6363e Croatia | |
| d0678099-227a-438f-8f88-9f90439bdaac Germany | |
| 80d20806-ce1f-48c0-8ce9-55aa544fdfdb Sweden | |
| 2d68fbeb-2e3a-4ef0-b5f1-22491e4e08de Denmark | |
| a620dae6-140f-4025-9af3-71a2d534f059 Portugal | |
| 5cf5c3f4-3218-451c-bdf4-88b1412e9b08 Germany | |
| d1936a29-e375-48b0-af78-704ab97893df Poland | |
| 61a8bd7e-04c4-41ef-bb29-6b4b49d5d815 Poland | |
| 7a70d179-d8d1-4a6f-8b42-36fbee8644f4 Germany | |
| 2df3a6e6-0bbc-4bf8-b7e8-b0da966ec9db Hungary | |
| 6e9bd584-fd2c-4ad5-ab2c-decd6518762d Sweden | |
| 8dce733e-5831-4d13-b366-773ea40a8d88 Norway | |
| 2519f0eb-0e7b-41d0-b603-534646724caf Netherlands | |
| 5a0c6279-c701-463e-b086-08086ce186bb Bulgaria | |
| 99e9522b-d553-42f8-9d4e-e859ce6e4eb5 Finland | |
| b92a8c58-0f1a-4e6b-a09c-bb272158ab8d Poland | |
| 5624c6ad-7737-484f-9895-e09c7cef4e71 France | |
| 73a85c12-8fa1-43c6-bc44-9c930b77a8e2 Germany | |
| c023cdea-c9bf-4d62-9b1a-ec48d4901d5d Estonia | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7DE312EDFF000XXX |
| E-Number (Norway) | 4380808 |
| EAN | 8056221019514 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 11.2 kg |
| Package Level 1 EAN | 8056221019514 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current Iu (EF001389) | 1250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 1250 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
