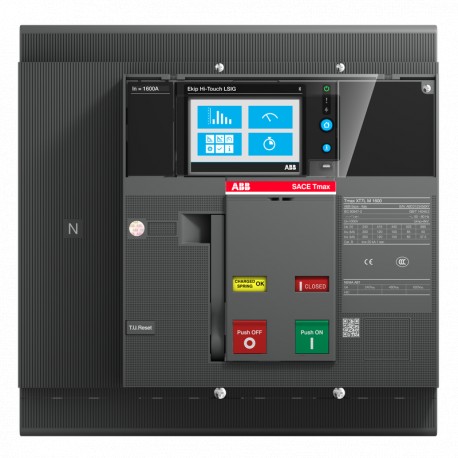

1SDA101793R1 ABB XT7L M 1600 EkipTouchMeas.LSIG 1600 4pFF

1SDA101793R1

101793

ABB

1 Pcs.

XT7L M 1600 EkipTouchMeas.LSIG 1600 4pFF

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb part number 1SDA101793R1 is an ABB XT7L M 1600 EkipTouchMeas.LSIG 1600 4pFF, designed to deliver precise electronic trip protection and switching for high-current industrial circuits. Molded case circuit breakers with integrated measurement units ensure optimal monitoring and fault isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 9AKK108468A2358
  • Environmental Product Declaration - EPD: 9AKK108468A1896
  • Extended Product Lifetime: Product Modularity
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Ambient Air Temperature: Operation -40 ... 125 °C
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: XLEMHFAZZAAAA00000
  • EAN: 8056221018371
  • Minimum Order Quantity: 1 piece

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXLEMHFAZZAAAA00000
EAN8056221018371
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221018371
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1437
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 94 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1600 A
ReleaseEkip Touch Measuring LSIG
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
