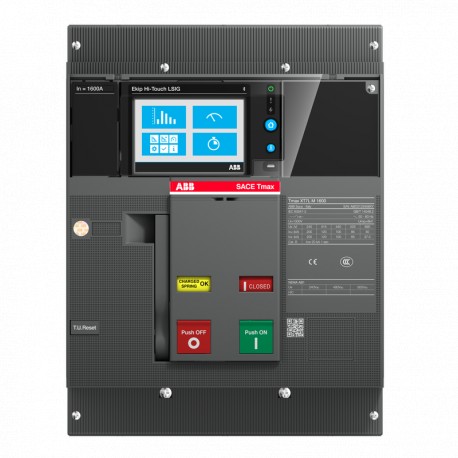

1SDA101380R1 ABB XT7S M 1250 Ekip Touch LSI In1250A 3p FF

1SDA101380R1

101380

ABB

1 Pcs.

XT7S M 1250 Ekip Touch LSI In1250A 3p FF

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP97f11fb2-358a-4fc0-b8d0-c4126b3f7d19 China
Simplified SCIPba0a8bb6-e3fc-4bf4-8484-8f123f55a08a Sweden
dc7c665e-55e9-4079-900e-1f2a897faf1b Hungary
15ffb61f-0d1d-45b5-ae9d-a0fd697b8b79 France
6f19a944-12f1-44f3-99af-6d47cd936693 Bulgaria
cbc0193e-bb89-49f3-a4d8-3b581a72d43e Sweden
5f666a4d-ff69-4014-99ef-2c01c053d811 Germany
841a602a-8150-487e-a403-ba330a29218b Poland
c903bf2f-6e59-4736-8563-f40e5ac5fdea Netherlands
5617d83e-9521-4479-bb14-b4b4ca26f6c1 Portugal
a9d1b5e7-2ed6-4732-922f-3755e2514305 Belgium
df52a922-6375-4635-8b04-dc060ecb569a Poland
0c068c60-5572-4670-a01f-8f974414af67 Germany
81fa5d88-ddd2-437c-b457-1c1737a07b9a Croatia
e2a147a7-156c-4215-a19a-0cfe59f63790 Hungary
ab31c409-2565-423c-928c-fdaee4969850 Germany
f1d7bdee-50c7-4ed3-b420-9a1f099db044 Estonia
e0f01a6e-150f-4a95-b6e3-a222e64fec05 Denmark
74104f74-889f-44bc-9e6a-d39e28b9119f Greece
89e8dd46-dcad-4b07-84ed-f5cd749111f5 Norway
c55a4d12-bbd9-4b56-b6a7-d87858b77b5a Spain
aeeafe35-98a3-40a9-a3d8-db743270bebd France
8a2af9bd-9a98-42eb-994e-03aefdf548c5 Germany
8325cb45-ca68-4340-aee6-d76a3c5e8834 Belgium
0a87fc8d-e998-4494-adaf-d1185e4a7084 Finland
cacf64a4-fc7f-4660-b6dd-828c6290a774 Germany
549a48a1-2e48-40c8-85b7-5c48c82bc5af Poland
59d5f85a-889f-457f-97e8-864b9e1232eb Czech Republic
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSEJEFAZZAAAA00000
E-Number (Norway)4380729
EAN8056221011983
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight9.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight11.2 kg
Package Level 1 EAN8056221011983
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 57 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1250 A
ReleaseEkip Touch LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
