> ABB > Molded case "Isomax-Tmax" > 101376

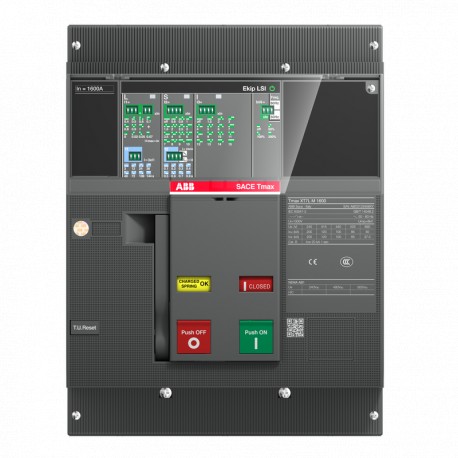

ABB 1SDA101376R1 1SDA101376R1 ABB XT7S M 1250 Ekip Dip LSIG In1250A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101376R1 ABB XT7S M 1250 Ekip Dip LSIG In1250A 3p F F

1SDA101376R1

101376

ABB

1 Pcs.

XT7S M 1250 Ekip Dip LSIG In1250A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPf933cee4-d611-4eb9-827c-2f0ff40558c1 China
Simplified SCIP15f27528-142e-4ece-a258-326d2d23f4e2 France
5fe578a4-2fe2-4788-829c-3f29a22f2325 Finland
180d0067-8690-4a95-96f9-f357dc223f0e France
45ffed45-b212-46a9-902b-4fddab152c79 Hungary
8a0c65dd-7421-4dbb-8f18-20f13b22a52f Bulgaria
e86903bc-6d2b-4738-a5c6-164eaacf20a8 Belgium
3fb6cf53-f0cb-4bd2-8770-2c5bf81e071f Sweden
f341abdc-bc05-47cd-a84c-3832ad46b351 Spain
e7729fb6-deba-46b1-8c83-1184e3e56bf2 Croatia
c2ace6fb-7b43-4404-b5c7-2edf997cbc31 Germany
5d783d91-0e7f-4717-ae24-5fde172ddef2 Poland
d6e9dbfc-7b75-4ebb-a0d3-5d72ef666273 Norway
99ab7fbe-65be-4202-9fdc-ae44623fecbd Sweden
8d17bbfd-3a03-4a7f-85f9-85468d52f193 Netherlands
75b6a893-ab2b-469f-a40f-2451f7925d14 Portugal
6be971ac-74db-4bc7-8baa-945abddd97df Germany
c1ebf2da-ad7e-4b90-babc-b3b267a46fb3 Poland
111e3639-5f76-4779-bbbd-cb9e6af4213e Hungary
fae9d29d-1cd5-412d-922b-1a3c7c2f9dc5 Denmark
cac88c3e-579b-4916-90c2-ce84fd7e0b39 Estonia
a6c286c9-9e24-40bf-9d7a-83073ca08a0d Germany
3dec2cc3-2f31-45fa-8220-d8f9a10965d4 Greece
2dee7768-ab4d-4b55-9377-76ce96b58c67 Poland
f1da780b-6235-4ed3-9f19-b2f20bc1b6a3 Czech Republic
ad22e3c9-2a2a-4ba2-947e-5a3a5212f8d4 Germany
b6b0cbae-dffc-417a-9a99-ee6733aee621 Germany
53bd4c1a-167f-4d48-9092-e28419499422 Belgium
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSEJDFAZZAAAA00000
EAN8056221011945
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221011945
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 57 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1250 A
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
