> ABB > Molded case "Isomax-Tmax" > 101375

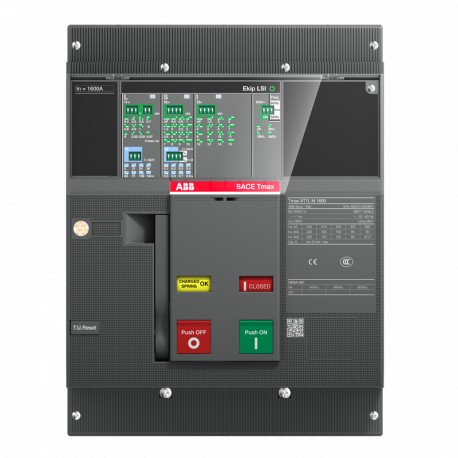

ABB 1SDA101375R1 1SDA101375R1 ABB XT7S M 1000 Ekip Dip LSIG In1000A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101375R1 ABB XT7S M 1000 Ekip Dip LSIG In1000A 3p F F

1SDA101375R1

101375

ABB

1 Pcs.

XT7S M 1000 Ekip Dip LSIG In1000A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPbfc14984-2973-47ee-a243-14170d0b457e Italy
Simplified SCIP8c6ae136-818d-49a4-9a14-e376d1a7a434 Belgium
93755846-e316-4882-8836-c08abd247155 Germany
9e85adc7-b4a1-4449-8515-e347ec9a9a1a France
ff51d5e0-47a7-4ef7-bfb5-284e51a2674a Denmark
641fee6b-276b-4b56-95d1-dc60ce7cf756 Poland
6d795b1a-4049-48a0-ba48-57c8742ddac0 Norway
d82fbdf2-ec8c-448a-a2e6-30c1fcc71727 Croatia
c8f573fb-fb81-4c79-8ca3-300689a8950a Greece
29330ec8-2722-4840-95a0-3a267acc58aa Poland
f27f4739-3ef8-49f3-ac08-ce95816fa5dd Germany
9f55059c-0ce9-44bc-810f-00ee8ee0daaf Sweden
222c8355-d344-451b-9385-6d750f69661d Netherlands
76afb525-7927-40a3-b069-0da4bc6ae8c4 Portugal
7f2a2330-2821-404f-9673-bad2c4dc69e4 Germany
d82fbdf2-ec8c-448a-a2e6-30c1fcc71727 Croatia
76afb525-7927-40a3-b069-0da4bc6ae8c4 Portugal
c8f573fb-fb81-4c79-8ca3-300689a8950a Greece
35ce64b7-5a2e-4b12-af39-ab1c2e322f88 Finland
641fee6b-276b-4b56-95d1-dc60ce7cf756 Poland
b18cdad2-cf4b-455c-b2dc-dedd4d15c929 Spain
973b0001-8287-43dd-88af-447ee93fac75 Poland
3080da5c-3d2f-4ff7-9a20-e29111f24e9e Germany
a33b3a8b-aba2-46e8-913d-2c3cc8e651f6 Hungary
b18cdad2-cf4b-455c-b2dc-dedd4d15c929 Spain
7f2a2330-2821-404f-9673-bad2c4dc69e4 Germany
8c04c8c2-eef7-4d0f-93b3-2fb5e58f353b France
8c6ae136-818d-49a4-9a14-e376d1a7a434 Belgium
29330ec8-2722-4840-95a0-3a267acc58aa Poland
9471c393-8ef8-4bb9-851a-314cbfc590b2 Sweden
9e85adc7-b4a1-4449-8515-e347ec9a9a1a France
9f55059c-0ce9-44bc-810f-00ee8ee0daaf Sweden
f27f4739-3ef8-49f3-ac08-ce95816fa5dd Germany
973b0001-8287-43dd-88af-447ee93fac75 Poland
8c04c8c2-eef7-4d0f-93b3-2fb5e58f353b France
85412162-e1c0-43fa-bdee-4845ce33eeff Hungary
a33b3a8b-aba2-46e8-913d-2c3cc8e651f6 Hungary
50d760b1-686b-4733-aa6f-e3760f1240ff Estonia
50d760b1-686b-4733-aa6f-e3760f1240ff Estonia
8121b723-8676-457e-b1c8-2b8dad1496d1 Bulgaria
8492560d-1454-421c-a560-cc8a36bf13f5 Czech Republic
222c8355-d344-451b-9385-6d750f69661d Netherlands
8492560d-1454-421c-a560-cc8a36bf13f5 Czech Republic
85412162-e1c0-43fa-bdee-4845ce33eeff Hungary
9471c393-8ef8-4bb9-851a-314cbfc590b2 Sweden
3080da5c-3d2f-4ff7-9a20-e29111f24e9e Germany
50ca7372-3700-4622-8945-a5580b409535 Germany
35ce64b7-5a2e-4b12-af39-ab1c2e322f88 Finland
93755846-e316-4882-8836-c08abd247155 Germany
7778d0e3-39f9-4c56-a5b2-4ccc7d4fe1a5 Belgium
8121b723-8676-457e-b1c8-2b8dad1496d1 Bulgaria
ff51d5e0-47a7-4ef7-bfb5-284e51a2674a Denmark
50ca7372-3700-4622-8945-a5580b409535 Germany
6d795b1a-4049-48a0-ba48-57c8742ddac0 Norway
7778d0e3-39f9-4c56-a5b2-4ccc7d4fe1a5 Belgium
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSEEDFAZZAAAA00000
EAN8056221011938
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221011938
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 37 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
