> ABB > Molded case "Isomax-Tmax" > 101371

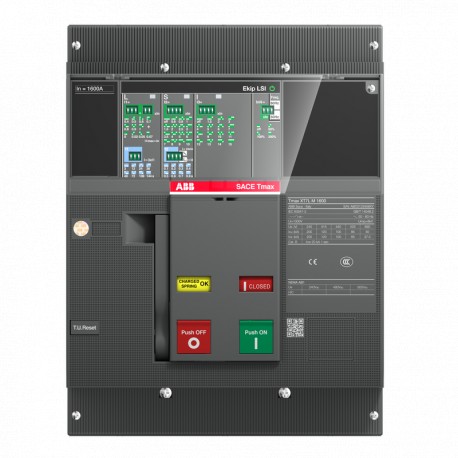

ABB 1SDA101371R1 1SDA101371R1 ABB XT7S M 1000 Ekip Dip LSI In 1000A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101371R1 ABB XT7S M 1000 Ekip Dip LSI In 1000A 3p F F

1SDA101371R1

101371

ABB

1 Pcs.

XT7S M 1000 Ekip Dip LSI In=1000A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP32bf9529-284e-43bd-ac80-aaf7894625e0 Italy
Simplified SCIP3bac5f02-d7b0-4072-869b-d5dcf8ffe887 Hungary
62376616-e256-47ae-91d6-b9a995ecf7f7 Belgium
6fab8f15-e6f1-4158-b309-ab35e421608c Germany
4315ec63-6cea-41f1-81ac-3e34bfbcdc1e Norway
027ac759-73e7-478b-a9b1-e34794cee176 Germany
fca087bc-8616-445a-94de-507fa4ea9a3b Bulgaria
d8837ea7-9e5a-46c6-9f72-743922fd25b6 Denmark
b372e024-cb17-4530-9fa1-b2ff1abcc85d Finland
62376616-e256-47ae-91d6-b9a995ecf7f7 Belgium
027ac759-73e7-478b-a9b1-e34794cee176 Germany
05ac5eea-256c-4684-8a1d-8ac041bacd42 Germany
d8837ea7-9e5a-46c6-9f72-743922fd25b6 Denmark
d93a5276-533f-4c95-a159-f52ea0973307 Poland
0aadf857-3b9e-4ba8-a0a8-9caac779f808 Sweden
f27a416f-6a22-435d-add4-b758546773d3 Greece
d93a5276-533f-4c95-a159-f52ea0973307 Poland
7c0ad7f5-b8e8-4fbf-9e41-013d654def27 Spain
b372e024-cb17-4530-9fa1-b2ff1abcc85d Finland
05ac5eea-256c-4684-8a1d-8ac041bacd42 Germany
a5abaafb-4019-4258-83e2-533112461310 Belgium
2133da0b-c9d7-40b9-bf16-b30cfd40ee21 Poland
04ab9072-cec4-45b1-8186-58a2a81ffc17 Portugal
6fab8f15-e6f1-4158-b309-ab35e421608c Germany
7b398e34-f83c-4047-86f4-85bd66ee728d Sweden
f27a416f-6a22-435d-add4-b758546773d3 Greece
4315ec63-6cea-41f1-81ac-3e34bfbcdc1e Norway
5113556d-53bb-402c-a076-10db69a95b2b Poland
db9a873e-f5fe-42f2-99bd-7bf8e22998e7 France
e884bac3-93e4-4c7d-aa5b-ac1594686334 Croatia
e1fc3aaf-0be4-457a-aa92-37d63ece0f86 Germany
04ab9072-cec4-45b1-8186-58a2a81ffc17 Portugal
e884bac3-93e4-4c7d-aa5b-ac1594686334 Croatia
4c8ff0cf-b9a2-4ece-aad2-f4c02c6ba9cd Germany
46b1c359-bd3c-4335-860e-09da86c486c2 Netherlands
46b1c359-bd3c-4335-860e-09da86c486c2 Netherlands
156ef331-d221-441c-a396-7fc4b78145df Czech Republic
fca087bc-8616-445a-94de-507fa4ea9a3b Bulgaria
7c0ad7f5-b8e8-4fbf-9e41-013d654def27 Spain
28905a2e-15e1-4728-b556-6133a8797c2f Hungary
5113556d-53bb-402c-a076-10db69a95b2b Poland
0aadf857-3b9e-4ba8-a0a8-9caac779f808 Sweden
e1fc3aaf-0be4-457a-aa92-37d63ece0f86 Germany
f17776b2-a56e-44f9-a424-133e44e91454 France
db9a873e-f5fe-42f2-99bd-7bf8e22998e7 France
4c8ff0cf-b9a2-4ece-aad2-f4c02c6ba9cd Germany
7b398e34-f83c-4047-86f4-85bd66ee728d Sweden
391bc522-0eee-4088-a581-95f8dd9abdd9 Estonia
3bac5f02-d7b0-4072-869b-d5dcf8ffe887 Hungary
156ef331-d221-441c-a396-7fc4b78145df Czech Republic
a5abaafb-4019-4258-83e2-533112461310 Belgium
391bc522-0eee-4088-a581-95f8dd9abdd9 Estonia
f17776b2-a56e-44f9-a424-133e44e91454 France
2133da0b-c9d7-40b9-bf16-b30cfd40ee21 Poland
28905a2e-15e1-4728-b556-6133a8797c2f Hungary
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSEECFAZZAAAA00000
E-Number (Norway)4380716
EAN8056221011891
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221011891
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 37 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Dip LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101371R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1000 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1000 A
Adjustment range short-term delayed short-circuit release (EF007129) 1000 A
Adjustment range undelayed short-circuit release (EF007131) 1000 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
