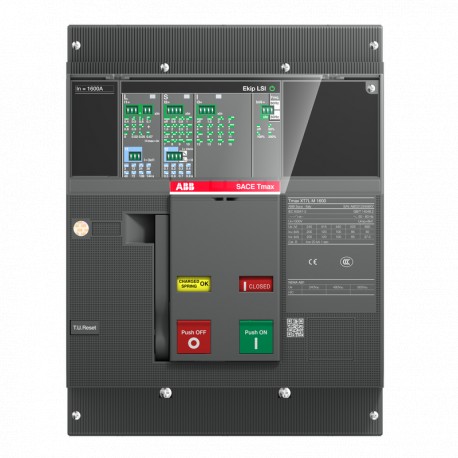

ABB 1SDA101370R1 1SDA101370R1 ABB XT7S M 800 Ekip Dip LSI In 800A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101370R1 ABB XT7S M 800 Ekip Dip LSI In 800A 3p F F

1SDA101370R1

101370

ABB

1 Pcs.

XT7S M 800 Ekip Dip LSI In=800A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2358
Environmental Product Declaration - EPD9AKK108468A1896
9AKK108468A4411
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb7722560-a255-4a06-92fb-703d0bbce0a3 Italy
Simplified SCIP65a763fa-b512-4fcb-a092-12268b33f20e Portugal
36bfeb41-08d4-490a-9ab3-01c2260857f0 Greece
d35c8fff-7d9d-4f6a-97f4-aece99c33cac Germany
bd752690-a26e-4f69-b1c8-3d24f4335dfb Poland
255662dc-16a1-4f46-b01a-3c69a0754bc2 Sweden
7831b6fa-2ec3-403a-a1a7-d58b19d0334a France
9dfb3174-eb8d-48bc-9db9-e0674cc5c237 Poland
86f0e015-f2cd-41f9-b645-36480a2edd67 Belgium
67cbf610-0556-481f-882f-1aba8ae00199 Sweden
40e4da8b-1a09-4f2c-af1a-08de45c49bb6 Netherlands
94dabc02-7c97-49ff-a599-4d8f71404a74 Czech Republic
b1cb9dec-9fcf-496e-ae88-19410f90a798 Bulgaria
c44d0113-ea2b-45c6-b0db-4302d8e08803 Croatia
65a763fa-b512-4fcb-a092-12268b33f20e Portugal
0f22f099-5cb0-4076-8edd-2d383804d548 Germany
c609e71d-91bc-48a0-a80f-6d753838ead0 Hungary
94dabc02-7c97-49ff-a599-4d8f71404a74 Czech Republic
0ffb0852-7c7b-4a81-851d-edca8fc08b29 Estonia
bd752690-a26e-4f69-b1c8-3d24f4335dfb Poland
eae2545b-5156-4fca-b19a-61e7b0cb3321 France
c609e71d-91bc-48a0-a80f-6d753838ead0 Hungary
ea560303-5338-42a4-b90f-4d8ce64a0d70 Hungary
0ffb0852-7c7b-4a81-851d-edca8fc08b29 Estonia
ea560303-5338-42a4-b90f-4d8ce64a0d70 Hungary
0f22f099-5cb0-4076-8edd-2d383804d548 Germany
eae2545b-5156-4fca-b19a-61e7b0cb3321 France
55750841-caf6-412c-bded-a1d1d338cdb0 Germany
085df503-39c9-49e9-bf95-4c3351365638 Spain
1c700fc9-83b7-41f8-b64a-91c8b1eb6675 Germany
6cf15e83-aa39-42cd-bef5-a4198929e513 Norway
3ac315ba-2b92-47c3-bb15-42377305ebc5 Poland
29d9df8c-f9dd-4990-8217-015179765e1f Finland
085df503-39c9-49e9-bf95-4c3351365638 Spain
455ec544-bea2-45f0-8aa8-e54ebc1c0582 Belgium
86f0e015-f2cd-41f9-b645-36480a2edd67 Belgium
75ac596e-0cf9-4a4d-9ec2-087a3290213e Denmark
b1cb9dec-9fcf-496e-ae88-19410f90a798 Bulgaria
455ec544-bea2-45f0-8aa8-e54ebc1c0582 Belgium
cbdb4077-5329-4f91-b86e-d983d1821632 Germany
29d9df8c-f9dd-4990-8217-015179765e1f Finland
67cbf610-0556-481f-882f-1aba8ae00199 Sweden
d35c8fff-7d9d-4f6a-97f4-aece99c33cac Germany
1c700fc9-83b7-41f8-b64a-91c8b1eb6675 Germany
cbdb4077-5329-4f91-b86e-d983d1821632 Germany
40e4da8b-1a09-4f2c-af1a-08de45c49bb6 Netherlands
255662dc-16a1-4f46-b01a-3c69a0754bc2 Sweden
55750841-caf6-412c-bded-a1d1d338cdb0 Germany
75ac596e-0cf9-4a4d-9ec2-087a3290213e Denmark
3ac315ba-2b92-47c3-bb15-42377305ebc5 Poland
9dfb3174-eb8d-48bc-9db9-e0674cc5c237 Poland
c44d0113-ea2b-45c6-b0db-4302d8e08803 Croatia
6cf15e83-aa39-42cd-bef5-a4198929e513 Norway
7831b6fa-2ec3-403a-a1a7-d58b19d0334a France
36bfeb41-08d4-490a-9ab3-01c2260857f0 Greece
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSECCFAZZAAAA00000
E-Number (Norway)4380715
EAN8056221011884
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221011884
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 24 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)800 A
ReleaseEkip Dip LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101370R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 800 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 320.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 800 A
Adjustment range undelayed short-circuit release (EF007131) 800 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
