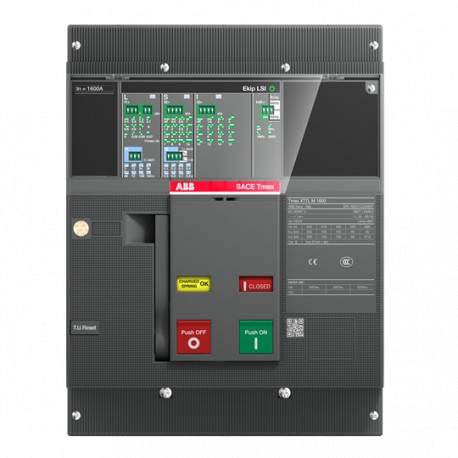

ABB 1SDA101366R1 1SDA101366R1 ABB XT7S M 800 Ekip Dip LS/I In 800A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101366R1 ABB XT7S M 800 Ekip Dip LS/I In 800A 3p F F

1SDA101366R1

101366

ABB

1 Pcs.

XT7S M 800 Ekip Dip LS/I In=800A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4411
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb9104628-c701-4da2-884e-ef4788561080 Italy
Simplified SCIPb3c498db-8293-4260-85ee-8ac32aaf2464 Germany
2b1dec6f-dcbf-41b3-8bc8-cc507db6658b Germany
8d9267db-2bad-4c8d-8ed8-8316a60a0803 Denmark
f4b1bc98-e4e2-4eb4-983b-fae6f40993c9 Germany
a58eb7c8-3ab5-4e60-b666-ca4fb0ff840a Croatia
fb7ee77e-46d9-4979-9d01-b3e1531e748a Czech Republic
14f4a852-958f-444a-b029-c914247a6030 Poland
4357a338-89e9-43e5-8baf-5deb48315089 Netherlands
1a930690-1e0e-40eb-8935-2f105d139469 Netherlands
bc131467-79ce-455b-8b0b-bec83fbda032 Estonia
5a975bb7-0501-452b-b7c0-a3196637d486 Greece
01449d32-838d-4ec4-9335-a2a4fcb5e4a8 Portugal
5c235cae-95fb-45ae-9ae8-bb0c55afb61b Bulgaria
1e96e278-ea5c-4d46-acc1-1ef88cc5d930 Sweden
e8338b5a-db3c-49c1-8dd4-812c65bb0a9d Poland
a7882aec-a304-452b-8580-21f4e9a3051e France
d226bad3-fb9e-49be-b497-1e044f820f85 Sweden
8b002a7b-ad1e-44e8-bf65-0c96908551a3 Germany
a848257d-8646-4daa-986a-e1a228f3b1d5 Germany
e8334f4e-17e2-4608-a5ad-30edef4926c2 France
65aa9ef3-75c8-4c33-a219-b20f15e058fd Netherlands
4a7c9f30-7364-40f6-918f-a6d5db76a1ec Spain
282c2b4f-e8f1-4063-b34e-982f7f8f6849 Netherlands
024f8714-7781-4b7e-a81b-9ff902aee4a9 Poland
264f799f-4c2b-45a4-87ba-d3ef6765de61 Norway
9ad54592-28c0-4987-8084-4b40d2dbf941 Finland
d0c199d0-ba73-42a9-9246-1a9cf10042dd Netherlands
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXSECAFAZZAAAA00000
E-Number (Norway)4380711
EAN8056221011846
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length178 mm
Product Net Weight11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221011846
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1337
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 24 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)800 A
ReleaseEkip Dip LS/I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7M
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
Mechanical Drawings1SDH002013A1102
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101366R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 800 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 320.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 800 A
Adjustment range undelayed short-circuit release (EF007131) 800 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
