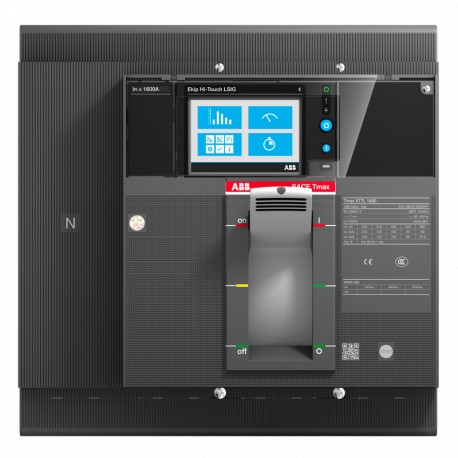

1SDA101248R1 ABB XT7L 1250 Ekip Touch Meas.LSI 1250 4p FF
1SDA101248R1
101248
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker, manufactured by Abb under the part number 1SDA101248R1 ABB XT7L 1250 Ekip Touch Meas.LSI 1250 4p FF, is engineered to manage large electrical loads and protect distribution networks against severe overloads and short circuits. These high-capacity units are commonly deployed in main switchboards and industrial power systems to ensure safe circuit isolation.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c328262e-a4e6-414e-97f6-595028bf8fe9 Italy
- Simplified SCIP: a3ff91ab-6035-4797-a826-dc991e12495f Czech Republic
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7LE412ERFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c328262e-a4e6-414e-97f6-595028bf8fe9 Italy |
| Simplified SCIP | a3ff91ab-6035-4797-a826-dc991e12495f Czech Republic |
| d7c54b71-304e-460f-a27b-4964c37cdd73 Belgium | |
| 23cff856-e579-49ba-a044-a026301507f9 Poland | |
| 44cd133d-a0b2-4d5c-9947-f1e993b8f885 France | |
| 47e1614c-c6cc-49a8-90dd-ff1f3fb4fb91 Hungary | |
| 5b219932-2aa2-4d46-a43a-2140c323fc0b Estonia | |
| 5b219932-2aa2-4d46-a43a-2140c323fc0b Estonia | |
| 412d4ba0-893d-4cbb-9035-bdbdfce2e85f Hungary | |
| 54b6eea0-d217-45e7-8455-fee8c37e9b09 Poland | |
| 497e19c3-31ba-42ac-bf4f-1073f43a38f9 France | |
| d992a33f-5e60-4788-960e-7bf5d19e1725 Sweden | |
| 44cd133d-a0b2-4d5c-9947-f1e993b8f885 France | |
| 70c9e789-ba9a-4ab2-a9d9-a3941bb17343 Germany | |
| 2463e526-263a-499d-bc7d-44a626b4b101 Germany | |
| aebb163a-4e90-4c68-8133-9be47581846e Sweden | |
| 48fe1d2b-92b9-469f-9068-add081164665 Portugal | |
| 1a5ff918-4b39-4628-b509-c3a2b224c634 Greece | |
| 23cff856-e579-49ba-a044-a026301507f9 Poland | |
| 7b34f9dd-58a1-46f6-9087-ba768526359e Spain | |
| f9d1e03e-a264-452b-ac35-f2e03cdd8265 Germany | |
| 714ceb02-3ce7-46b4-81bb-4b182c9cd353 Poland | |
| 256b9a74-54bd-44d1-afe7-7a16bdb15356 Belgium | |
| d992a33f-5e60-4788-960e-7bf5d19e1725 Sweden | |
| 5d5103aa-68fb-46f6-8e05-5d2f449192b0 Germany | |
| 4e6cc460-d7de-4624-8858-1d3ae2be3057 Finland | |
| aaf8a300-1e7a-4ffe-adf7-4a0c399e85d8 Germany | |
| 7c4cbc62-9cec-4151-aff4-f8a6d2a95af8 Denmark | |
| 714ceb02-3ce7-46b4-81bb-4b182c9cd353 Poland | |
| a3ff91ab-6035-4797-a826-dc991e12495f Czech Republic | |
| 54b6eea0-d217-45e7-8455-fee8c37e9b09 Poland | |
| f9d1e03e-a264-452b-ac35-f2e03cdd8265 Germany | |
| 65e56632-ec73-4615-8cd9-a4dbe7b03ee1 Bulgaria | |
| 7c4cbc62-9cec-4151-aff4-f8a6d2a95af8 Denmark | |
| 5d5103aa-68fb-46f6-8e05-5d2f449192b0 Germany | |
| 1fc368d6-a11a-4563-bff1-17fa2c0da308 Norway | |
| 256b9a74-54bd-44d1-afe7-7a16bdb15356 Belgium | |
| d7c54b71-304e-460f-a27b-4964c37cdd73 Belgium | |
| 7b34f9dd-58a1-46f6-9087-ba768526359e Spain | |
| 47e1614c-c6cc-49a8-90dd-ff1f3fb4fb91 Hungary | |
| aebb163a-4e90-4c68-8133-9be47581846e Sweden | |
| 0c2f090d-90e6-432f-af0f-dfc5b58291e8 Netherlands | |
| 4e6cc460-d7de-4624-8858-1d3ae2be3057 Finland | |
| aaf8a300-1e7a-4ffe-adf7-4a0c399e85d8 Germany | |
| 497e19c3-31ba-42ac-bf4f-1073f43a38f9 France | |
| 1fc368d6-a11a-4563-bff1-17fa2c0da308 Norway | |
| 1a5ff918-4b39-4628-b509-c3a2b224c634 Greece | |
| e9797abe-db0b-40a8-b127-9af53107c46b Croatia | |
| 2463e526-263a-499d-bc7d-44a626b4b101 Germany | |
| 412d4ba0-893d-4cbb-9035-bdbdfce2e85f Hungary | |
| 48fe1d2b-92b9-469f-9068-add081164665 Portugal | |
| 70c9e789-ba9a-4ab2-a9d9-a3941bb17343 Germany | |
| 65e56632-ec73-4615-8cd9-a4dbe7b03ee1 Bulgaria | |
| 0c2f090d-90e6-432f-af0f-dfc5b58291e8 Netherlands | |
| e9797abe-db0b-40a8-b127-9af53107c46b Croatia | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE412ERFF000XXX |
| E-Number (Norway) | 4380879 |
| EAN | 8056221010665 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221010665 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
