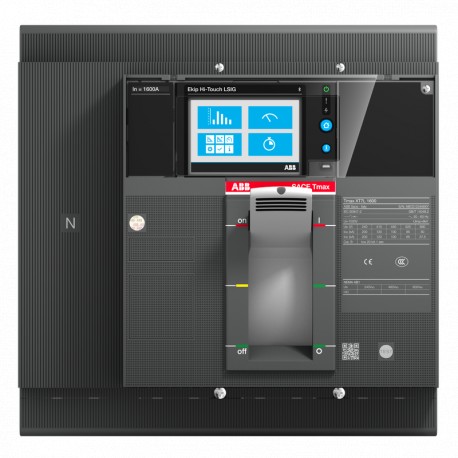

1SDA101244R1 ABB XT7L 1250 Ekip Touch LSIG In1250A 4p F F
1SDA101244R1
101244
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part 1SDA101244R1 XT7L 1250 Ekip Touch LSIG is a sophisticated molded case circuit-breaker designed for high-performance power distribution networks. These advanced switching devices deliver precise protection and monitoring capabilities to safeguard industrial machinery and electrical distribution infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: e10fac01-0d2d-4fb0-9dd9-244447c34005 Italy
- Simplified SCIP: 940321bc-bdaa-4d1f-9e7c-7f59f58cf169 Belgium
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7LE412EQFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e10fac01-0d2d-4fb0-9dd9-244447c34005 Italy |
| Simplified SCIP | 940321bc-bdaa-4d1f-9e7c-7f59f58cf169 Belgium |
| e3e2d6ad-6c79-4af1-bcce-bb88fd7fdda8 Bulgaria | |
| 5d79c3af-99fb-44e3-a5c0-39e2a782b017 Germany | |
| 2fe6aaef-b6ba-4778-a7c2-5dfd85ed8c50 Spain | |
| ba9ebaad-fb32-4d9d-813f-648e2488c1f3 Hungary | |
| dcd2d2bb-a093-49f8-975e-136e1462f190 Germany | |
| ad1d37db-8b22-4dde-9267-6c0fda36ed2e Poland | |
| 2d25029e-701f-47bc-b63a-442ecc70500b France | |
| 514525ef-f7d9-4da4-8475-ed5c74721d73 Portugal | |
| a16b30d9-842b-485b-a0fa-ef26e14b5bc5 France | |
| ed5239ad-589e-466c-a54e-cf775ddeeb95 Sweden | |
| e75ef0a3-1d03-4ee2-a2f4-dab8768dfe56 Germany | |
| 9f10cca2-06a0-48fa-84dd-2d68fe2ec357 Norway | |
| 7be65432-9d12-4ef0-902a-8d2152d14ec6 Poland | |
| 0b54d888-5c6c-4054-960a-0fc7bc07fde9 Finland | |
| cc15190c-3871-45f0-ba6b-706d3535bf81 Czech Republic | |
| f591d5d9-fd6a-4d72-815d-5a2ea1eaff88 Germany | |
| 17fb5850-e675-47f0-8f18-8faa82467134 Germany | |
| 590c1abf-a794-45a8-a8a3-11bec752132b Denmark | |
| d48ff68d-8988-4c9e-bc3d-fca6a5234ea2 Belgium | |
| 5d0b7cc2-b324-4543-a7aa-579d521ea9ca Hungary | |
| edeb9d8c-bacf-4809-aee0-63e2bb9deb54 Sweden | |
| 03656447-8575-4874-9c29-ae8b75c30f88 Greece | |
| a942c012-dfac-4fbf-8746-5a89929cb52b Estonia | |
| f500bbdf-b49c-4fb3-82b6-eadeb622271f Poland | |
| 2154bc6c-ff1a-4d1a-821b-d9c517af8a41 Netherlands | |
| 80231e91-13c4-4bc7-8902-ed49a438bc5e Croatia | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE412EQFF000XXX |
| EAN | 8056221015479 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221015479 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
