> ABB > Molded case "Isomax-Tmax" > 101239

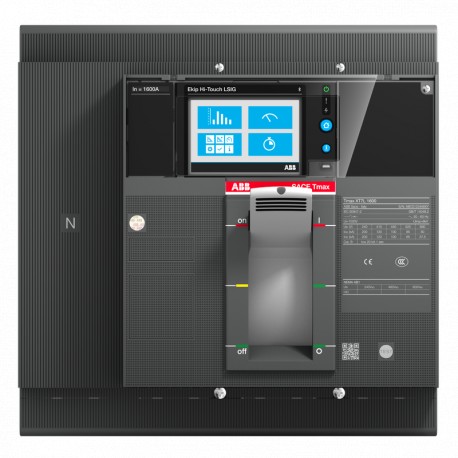

ABB 1SDA101239R1 1SDA101239R1 ABB XT7L 1000 Ekip Touch LSI In 1000A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101239R1 ABB XT7L 1000 Ekip Touch LSI In 1000A 4p F F

1SDA101239R1

101239

ABB

1 Pcs.

XT7L 1000 Ekip Touch LSI In=1000A 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPee2f932f-56b8-460f-ae32-67779c677cef Italy
Simplified SCIPdfea53b0-7629-47b9-9d74-82a57515e7db Sweden
20a5e20c-0648-40fd-b009-ca3025d26999 Poland
b5990cb8-1524-4bc9-bcd3-a12b6716f574 France
b06ddf31-fcb3-4cf8-a192-7407388e0917 Sweden
7c2d336a-1ff8-483e-831a-7b0f9fa90a7b Germany
e321cbaf-9544-497e-9a7e-7efccb3f089c Germany
1ba1aebc-ebcc-4a6c-b26f-ca025b61cf1b Hungary
88873011-b4cd-4a3f-b14c-50e6d9871bc8 Estonia
074f1d5c-9bf0-4cd2-a4c1-e8167478b58b Bulgaria
74bc4094-1c56-4f0e-9b8a-4e1f5cf446bb Netherlands
1ae7ad01-7e8a-45c3-91c6-6f14342a1cb9 Czech Republic
1d23bbb5-4ff6-4ade-96fa-eb8b8f352ffa Belgium
88873011-b4cd-4a3f-b14c-50e6d9871bc8 Estonia
b9d7a58b-007a-467d-85fc-aedbb584aba9 Hungary
49d71828-624f-476c-a2e4-72aca03790e7 Poland
e81510e4-dc97-4057-ab1f-d4dbbbf8526c France
33c30eff-7679-419f-9463-daf48b644b63 Poland
af3ca493-cf7b-4653-aa20-663b6c1503b1 Spain
49d71828-624f-476c-a2e4-72aca03790e7 Poland
410f9c54-ffaf-405e-89af-30b13f5cfe20 Germany
e1b94e1d-2d36-4bd7-8336-a67f4e977539 Portugal
5d674365-c263-4ae8-bff9-36a084a801e5 Greece
dfea53b0-7629-47b9-9d74-82a57515e7db Sweden
6e01451f-2981-4b0c-a7e3-c3069137026f Germany
ae4023cb-eb3e-4507-90af-91ab73b35313 Belgium
04133136-3a31-4c7c-95db-ff696b4096e3 Finland
33c30eff-7679-419f-9463-daf48b644b63 Poland
48ca3dfd-23f9-4e42-8b19-014c55e8df5a Denmark
20a5e20c-0648-40fd-b009-ca3025d26999 Poland
1ae7ad01-7e8a-45c3-91c6-6f14342a1cb9 Czech Republic
410f9c54-ffaf-405e-89af-30b13f5cfe20 Germany
6e01451f-2981-4b0c-a7e3-c3069137026f Germany
1d23bbb5-4ff6-4ade-96fa-eb8b8f352ffa Belgium
919b8098-327b-4b18-93b2-34d2e0ca3044 Norway
ae4023cb-eb3e-4507-90af-91ab73b35313 Belgium
48ca3dfd-23f9-4e42-8b19-014c55e8df5a Denmark
5a9f690b-5425-40d8-8d27-ca7737c423a2 Germany
074f1d5c-9bf0-4cd2-a4c1-e8167478b58b Bulgaria
e81510e4-dc97-4057-ab1f-d4dbbbf8526c France
b9d7a58b-007a-467d-85fc-aedbb584aba9 Hungary
af3ca493-cf7b-4653-aa20-663b6c1503b1 Spain
74bc4094-1c56-4f0e-9b8a-4e1f5cf446bb Netherlands
b06ddf31-fcb3-4cf8-a192-7407388e0917 Sweden
5a9f690b-5425-40d8-8d27-ca7737c423a2 Germany
04133136-3a31-4c7c-95db-ff696b4096e3 Finland
b5990cb8-1524-4bc9-bcd3-a12b6716f574 France
919b8098-327b-4b18-93b2-34d2e0ca3044 Norway
5d674365-c263-4ae8-bff9-36a084a801e5 Greece
f2f26bdb-74bd-46e3-8294-37b1274a7073 Croatia
7c2d336a-1ff8-483e-831a-7b0f9fa90a7b Germany
1ba1aebc-ebcc-4a6c-b26f-ca025b61cf1b Hungary
f2f26bdb-74bd-46e3-8294-37b1274a7073 Croatia
e1b94e1d-2d36-4bd7-8336-a67f4e977539 Portugal
e321cbaf-9544-497e-9a7e-7efccb3f089c Germany
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7LE410DPFF000XXX
E-Number (Norway)4380874
EAN8056221015424
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221015424
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 37 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Touch LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101239R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1000 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1000 A
Adjustment range short-term delayed short-circuit release (EF007129) 10000 A
Adjustment range undelayed short-circuit release (EF007131) 1500.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
