> ABB > Molded case "Isomax-Tmax" > 101238

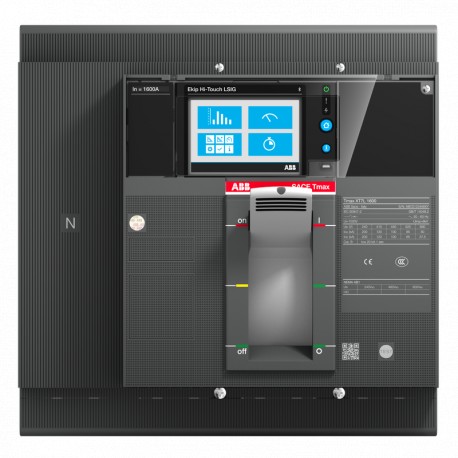

ABB 1SDA101238R1 1SDA101238R1 ABB XT7L 800 Ekip Touch LSI In 800A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101238R1 ABB XT7L 800 Ekip Touch LSI In 800A 4p F F

1SDA101238R1

101238

ABB

1 Pcs.

XT7L 800 Ekip Touch LSI In=800A 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPdeff3237-1a12-4abe-8a7c-3910e4837df1 Italy
Simplified SCIP8b11bd93-77a2-4d86-87e6-f6f837072815 Hungary
c274557a-bf58-4032-8556-ed40cb7824c6 Belgium
ffa4ef0f-dbf5-4750-ba06-05d744235201 Estonia
c76c5465-9c8a-4f20-b09c-d9a300ddaf62 Sweden
7c442ff8-38d3-427a-a7cd-f3aacd1f5d0f France
74bc704e-0470-4139-84b3-0f663defffbe Poland
1de761ae-c752-41ab-9da0-c2ec3f9b57d9 Sweden
250381cf-1ace-4679-b55c-1d07c5e674ce Poland
ffa4ef0f-dbf5-4750-ba06-05d744235201 Estonia
2dc4bfc7-967b-49dc-941f-8761b5cf82d8 Hungary
0043879f-18b1-416d-a07e-97149305aeb1 France
13fa420b-a3a0-440d-87cb-82bc50dc6b81 Bulgaria
5d65754d-2290-465f-8f74-3b6271b9b895 Czech Republic
92dbc2ec-8476-40ea-a90d-bb4c55683bec Netherlands
0043879f-18b1-416d-a07e-97149305aeb1 France
02a462a0-b759-47c2-89c8-1203b90533c7 Spain
8b11bd93-77a2-4d86-87e6-f6f837072815 Hungary
315fb723-85db-4f1e-b30e-2e2f9fa8e0ae Germany
53b818df-f7cf-4060-990c-1941f58937b8 Germany
02a462a0-b759-47c2-89c8-1203b90533c7 Spain
c274557a-bf58-4032-8556-ed40cb7824c6 Belgium
26555fb2-0679-44bb-9e3d-896df4b1fa40 Germany
a66e1d22-7e94-47a6-aaa9-8121606eff48 Belgium
51b5f56d-c329-4331-b837-88a9a13b82f3 Norway
13fa420b-a3a0-440d-87cb-82bc50dc6b81 Bulgaria
8eef36a6-d98b-4d24-8f97-80a98accf302 Denmark
a66e1d22-7e94-47a6-aaa9-8121606eff48 Belgium
ce247131-79fd-4fcf-9709-e682c9429c12 Finland
4b53e716-ac01-434b-b8c6-5bef718a0410 Germany
5d65754d-2290-465f-8f74-3b6271b9b895 Czech Republic
8758ee27-d7ed-4c7b-9cd3-50042f1b99bf Germany
c76c5465-9c8a-4f20-b09c-d9a300ddaf62 Sweden
26555fb2-0679-44bb-9e3d-896df4b1fa40 Germany
ce247131-79fd-4fcf-9709-e682c9429c12 Finland
2dc4bfc7-967b-49dc-941f-8761b5cf82d8 Hungary
315fb723-85db-4f1e-b30e-2e2f9fa8e0ae Germany
1de761ae-c752-41ab-9da0-c2ec3f9b57d9 Sweden
92dbc2ec-8476-40ea-a90d-bb4c55683bec Netherlands
53b818df-f7cf-4060-990c-1941f58937b8 Germany
512aa7e9-47ea-4b78-9df9-67c823a2ad90 Portugal
0b6b41ab-a5fb-4fdb-baea-0a11ab36cc9e Croatia
4b53e716-ac01-434b-b8c6-5bef718a0410 Germany
531c8ef4-8019-4667-9712-f450e7350aec Greece
7c442ff8-38d3-427a-a7cd-f3aacd1f5d0f France
51b5f56d-c329-4331-b837-88a9a13b82f3 Norway
8eef36a6-d98b-4d24-8f97-80a98accf302 Denmark
d1ab42df-221a-46be-adc2-8dd6279cd94b Poland
74bc704e-0470-4139-84b3-0f663defffbe Poland
0b6b41ab-a5fb-4fdb-baea-0a11ab36cc9e Croatia
8758ee27-d7ed-4c7b-9cd3-50042f1b99bf Germany
250381cf-1ace-4679-b55c-1d07c5e674ce Poland
512aa7e9-47ea-4b78-9df9-67c823a2ad90 Portugal
d1ab42df-221a-46be-adc2-8dd6279cd94b Poland
531c8ef4-8019-4667-9712-f450e7350aec Greece
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7LE480CPFF000XXX
E-Number (Norway)4380873
EAN8056221015417
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221015417
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 24 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)800 A
ReleaseEkip Touch LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101238R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 800 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 320.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 480.0 A
Adjustment range undelayed short-circuit release (EF007131) 1200.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
