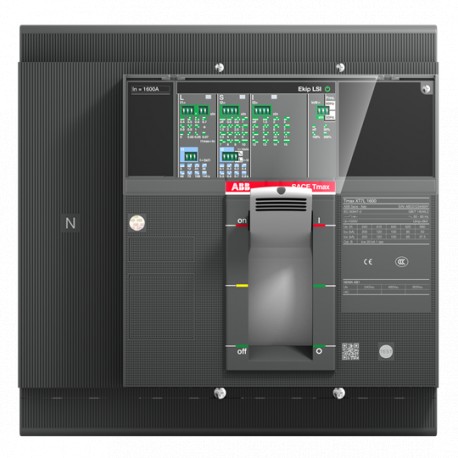

ABB 1SDA101235R1 1SDA101235R1 ABB XT7L 1000 Ekip Dip LSIG In 1000A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101235R1 ABB XT7L 1000 Ekip Dip LSIG In 1000A 4p F F

1SDA101235R1

101235

ABB

1 Pcs.

XT7L 1000 Ekip Dip LSIG In=1000A 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPcd9b03c0-a498-4426-b6f3-9b18289c411c Italy
Simplified SCIP528ea7bd-ebe4-496a-aa21-5250f013fb6a Hungary
229f3462-2ee6-4f36-b903-b13f9f326ccc Belgium
0a655671-91bb-4c30-abcb-bf88175dfd54 Estonia
27a90f80-5133-4fee-a25f-4ed18bb31079 Sweden
e9f15a24-f273-4745-b0e5-4d291ee7bd3c Sweden
15ebc437-8c23-4583-8110-c55842b72f66 Poland
733ce1f0-28c1-4667-bbd5-7aa7a6f4b6f3 France
4f0096f4-ee7a-49dd-b4b4-1a9b0f3c93c1 Hungary
0a655671-91bb-4c30-abcb-bf88175dfd54 Estonia
cdf5fa2d-c770-47d1-ae9c-25b3fae5456c France
6b1e957d-0b45-4727-8a4e-daddf21de2c3 Poland
43cdcb5d-3eb9-4dba-8a46-c29fa099b16d Bulgaria
2f928a58-549e-452e-aad1-0a978ec5177c Netherlands
9c55d6ea-0cf9-4488-a155-3de7b5c51f52 Czech Republic
528ea7bd-ebe4-496a-aa21-5250f013fb6a Hungary
ac2ce2e7-62cf-4bd7-9df2-8f109e5c25f7 Spain
cdf5fa2d-c770-47d1-ae9c-25b3fae5456c France
29bc1d49-adfc-4658-aa48-ef186d5ba5f8 Germany
c92bce42-2b75-45a4-9056-fa2f4bb7b41f Germany
2992b52f-7b87-45f4-b381-28b7bba5be37 Norway
9cf13e41-1ed8-4004-892e-65414e6d28fa Belgium
b8f31556-8cb5-4859-be97-dc75da484494 Germany
229f3462-2ee6-4f36-b903-b13f9f326ccc Belgium
ac2ce2e7-62cf-4bd7-9df2-8f109e5c25f7 Spain
df50f696-e491-4cb0-b053-af68d06fe35f Denmark
43cdcb5d-3eb9-4dba-8a46-c29fa099b16d Bulgaria
4cbc62b0-ff31-46ff-9a3c-b036ba37eef6 Finland
65380bcb-0993-43a3-a2de-832f80f3d62f Germany
9cf13e41-1ed8-4004-892e-65414e6d28fa Belgium
9c55d6ea-0cf9-4488-a155-3de7b5c51f52 Czech Republic
6edfb2b5-8dfd-4d11-b8a8-7fe900b3837d Germany
15ebc437-8c23-4583-8110-c55842b72f66 Poland
27a90f80-5133-4fee-a25f-4ed18bb31079 Sweden
b8f31556-8cb5-4859-be97-dc75da484494 Germany
4f0096f4-ee7a-49dd-b4b4-1a9b0f3c93c1 Hungary
29bc1d49-adfc-4658-aa48-ef186d5ba5f8 Germany
2f928a58-549e-452e-aad1-0a978ec5177c Netherlands
e9f15a24-f273-4745-b0e5-4d291ee7bd3c Sweden
4cbc62b0-ff31-46ff-9a3c-b036ba37eef6 Finland
c0b52fd3-5ab1-464d-9ac5-2c55bf436111 Croatia
c92bce42-2b75-45a4-9056-fa2f4bb7b41f Germany
671b61d2-035d-4fc7-a7f8-682f21ec0689 Portugal
c0b52fd3-5ab1-464d-9ac5-2c55bf436111 Croatia
df50f696-e491-4cb0-b053-af68d06fe35f Denmark
b8e72718-a514-4b73-ae88-b379f17e7c84 Poland
65380bcb-0993-43a3-a2de-832f80f3d62f Germany
733ce1f0-28c1-4667-bbd5-7aa7a6f4b6f3 France
2992b52f-7b87-45f4-b381-28b7bba5be37 Norway
532baf70-f0b6-4818-a6d8-da5ae0784647 Greece
532baf70-f0b6-4818-a6d8-da5ae0784647 Greece
671b61d2-035d-4fc7-a7f8-682f21ec0689 Portugal
6edfb2b5-8dfd-4d11-b8a8-7fe900b3837d Germany
6b1e957d-0b45-4727-8a4e-daddf21de2c3 Poland
b8e72718-a514-4b73-ae88-b379f17e7c84 Poland
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7LE410DGFF000XXX
EAN8056221015387
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221015387
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 37 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101235R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1000 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1000 A
Adjustment range short-term delayed short-circuit release (EF007129) 1000 A
Adjustment range undelayed short-circuit release (EF007131) 1000 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
