> ABB > Molded case "Isomax-Tmax" > 101194

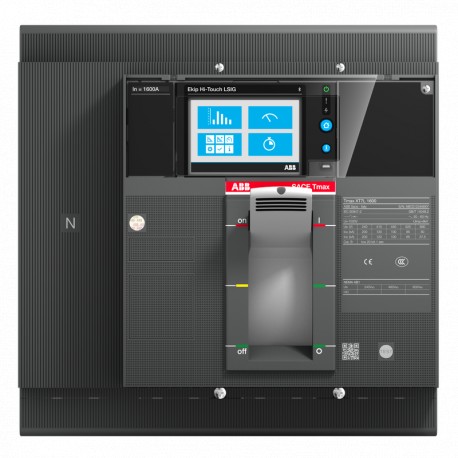

ABB 1SDA101194R1 1SDA101194R1 ABB XT7H 800 Ekip Touch Meas.LSIG In800 4pFF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101194R1 ABB XT7H 800 Ekip Touch Meas.LSIG In800 4pFF

1SDA101194R1

101194

ABB

1 Pcs.

XT7H 800 Ekip Touch Meas.LSIG In800 4pFF

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP18f1b00c-f322-4661-8a40-d2266e18b3c3 Italy
Simplified SCIPa1edfbdc-7420-4ebd-a9c8-0a02c97e5486 Denmark
0a78a692-401c-48d0-91bf-045943d0236f Germany
6c31ae63-b8a7-409d-8ed5-ee3edcb15978 Belgium
141d0720-9cce-4ce6-abac-ce0b8c498760 Norway
08d48317-f5b7-46a1-a0e7-72b865ed7cdb Germany
f85868ba-e313-4396-8f87-e8acd24b7278 Bulgaria
f8fbc57d-2f42-4f1b-9ed8-26710e6514c6 Greece
141d0720-9cce-4ce6-abac-ce0b8c498760 Norway
40a3f673-92bd-484c-9fe8-c813095bfee8 France
a9d110d5-e4a5-41c1-b3ba-4f5051c91a44 Croatia
67779856-b305-415a-aa77-bbe896328184 Netherlands
4a2fc300-4008-495d-b9d5-2ae879e7cd89 Finland
0a78a692-401c-48d0-91bf-045943d0236f Germany
676d4d55-aede-485d-93e6-d9f0a1391028 Germany
a2b61940-e83e-49de-a310-f31bfb8a916a Hungary
6eafca8b-21d6-4628-af15-172232199a42 Germany
7a278160-106c-4f03-a30d-ded25e737160 Portugal
4a1750ac-76b5-465c-965e-427bb193f79f Sweden
a9d110d5-e4a5-41c1-b3ba-4f5051c91a44 Croatia
4520b3ac-eb8b-4050-90df-bbd365df1882 Poland
d319d164-f71b-4062-8a37-65226e91ad8f Poland
b5baa446-7bab-40c4-9a2b-9b952c55b1f7 Germany
7a278160-106c-4f03-a30d-ded25e737160 Portugal
f8fbc57d-2f42-4f1b-9ed8-26710e6514c6 Greece
6eafca8b-21d6-4628-af15-172232199a42 Germany
c3ffbccb-2064-41ad-9250-8f71282a666f France
5835904a-32c0-4d52-a8c5-b298a7947463 Spain
b7311939-09a3-4eac-a93c-b0380e1b2786 Hungary
5835904a-32c0-4d52-a8c5-b298a7947463 Spain
659ab9fd-bd50-4423-a77a-391044f1c408 Sweden
c9dac91b-457c-407e-a16b-378a61ea35a4 Poland
40a3f673-92bd-484c-9fe8-c813095bfee8 France
4a1750ac-76b5-465c-965e-427bb193f79f Sweden
676d4d55-aede-485d-93e6-d9f0a1391028 Germany
9344e8c9-a27b-4aee-8ae6-2c5d5b303249 Estonia
11fcabff-df42-4718-96e1-63507926daae Belgium
9344e8c9-a27b-4aee-8ae6-2c5d5b303249 Estonia
b7311939-09a3-4eac-a93c-b0380e1b2786 Hungary
d319d164-f71b-4062-8a37-65226e91ad8f Poland
c3ffbccb-2064-41ad-9250-8f71282a666f France
ef9f03f2-2d22-4238-81cf-3b3cbd2c0d2f Czech Republic
67779856-b305-415a-aa77-bbe896328184 Netherlands
f85868ba-e313-4396-8f87-e8acd24b7278 Bulgaria
a2b61940-e83e-49de-a310-f31bfb8a916a Hungary
4a2fc300-4008-495d-b9d5-2ae879e7cd89 Finland
6c31ae63-b8a7-409d-8ed5-ee3edcb15978 Belgium
b5baa446-7bab-40c4-9a2b-9b952c55b1f7 Germany
08d48317-f5b7-46a1-a0e7-72b865ed7cdb Germany
659ab9fd-bd50-4423-a77a-391044f1c408 Sweden
a1edfbdc-7420-4ebd-a9c8-0a02c97e5486 Denmark
ef9f03f2-2d22-4238-81cf-3b3cbd2c0d2f Czech Republic
c9dac91b-457c-407e-a16b-378a61ea35a4 Poland
4520b3ac-eb8b-4050-90df-bbd365df1882 Poland
11fcabff-df42-4718-96e1-63507926daae Belgium
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7HE480CSFF000XXX
EAN8056221014977
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221014977
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 24 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)800 A
ReleaseEkip Touch Measuring LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101194R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 800 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 320.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 480.0 A
Adjustment range undelayed short-circuit release (EF007131) 1200.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
