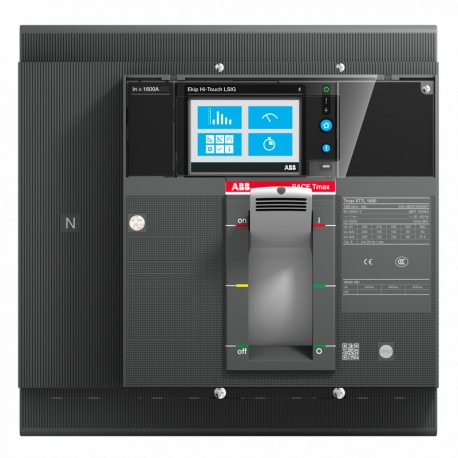

1SDA101191R1 ABB XT7H 1000 Ekip Touch Meas.LSI 1000 4p FF
1SDA101191R1
101191
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An advanced electronic protection device, the ABB XT7H 1000 Ekip Touch Meas.LSI 1000 4p FF circuit breaker delivers sophisticated measurement, monitoring, and fault-clearing capabilities for critical electrical infrastructure. Facilities rely on these high-performance four-pole breakers to protect heavy-duty industrial feeders against thermal overloads and short circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f4f7991f-0a62-417a-aaef-8edca4ec5b97 Italy
- Simplified SCIP: d8b968e2-15f0-4d79-a916-90c1a4d7b2d7 Belgium
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7HE410DRFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f4f7991f-0a62-417a-aaef-8edca4ec5b97 Italy |
| Simplified SCIP | d8b968e2-15f0-4d79-a916-90c1a4d7b2d7 Belgium |
| d55c56aa-b7e6-4014-9ef9-fa2f4b935a91 Finland | |
| 70cac35c-b604-435d-aa1c-db88d05f0ade Belgium | |
| b4ecf8b4-847e-4a8e-8198-19a1867d978c Germany | |
| c5cb5dd3-8bb4-4e8f-87fd-abb7a8ae0f05 France | |
| dad6ba83-de47-4132-b4b2-46cb53e58284 Portugal | |
| ffdb5caa-ca08-41dc-8ca4-f6fe0f1520cf Bulgaria | |
| c536859a-2376-4d65-9e86-c7c1229b5495 Sweden | |
| 076a9b84-8976-4675-8f20-559979b350cc France | |
| 3339a16f-7015-4bb4-b1c6-6d9b4740f1cd Germany | |
| bbdc4ff2-396c-4936-a600-dd35dcfc161c Hungary | |
| d3f162d6-ea5a-4e85-a660-6281aebc1e78 Spain | |
| 54d08050-0573-48a9-a1e8-60bfeffb4a15 Hungary | |
| 26e00182-5cb6-40cb-aad7-f5cf4effb2ac Netherlands | |
| 32fe3b6c-c0c2-4f20-ae8e-569f3e4cc1a3 Croatia | |
| ec8d3436-245a-413f-adb7-7b07192e2153 Sweden | |
| 993bb32d-7751-451b-8510-22fb47411be5 Estonia | |
| 5faff355-65ba-425b-b977-3670716bd3b5 Greece | |
| 04d990c5-3f8a-4e12-8a12-7f340d9f9ac5 Poland | |
| aa5cbb45-b008-443c-8a6e-41ac583163f1 Czech Republic | |
| fb624cc3-066f-4e02-b103-27d785bce5e8 Germany | |
| 93a80fc6-2941-47e4-bea4-3a719aa91f29 Germany | |
| c0430dd2-a883-45d4-bd86-fd20af78cd0c Denmark | |
| 56c436c6-efdf-42db-a529-9e8d5b2b4ddb Poland | |
| abe6b059-1525-437e-860d-e063d74768ed Norway | |
| 80bf08dd-06b3-489b-90b0-9ecb743efd13 Germany | |
| 46373aae-fd36-412e-b39e-2d79d6ed2369 Poland | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE410DRFF000XXX |
| E-Number (Norway) | 4380854 |
| EAN | 8056221014946 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014946 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Touch Measuring LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
