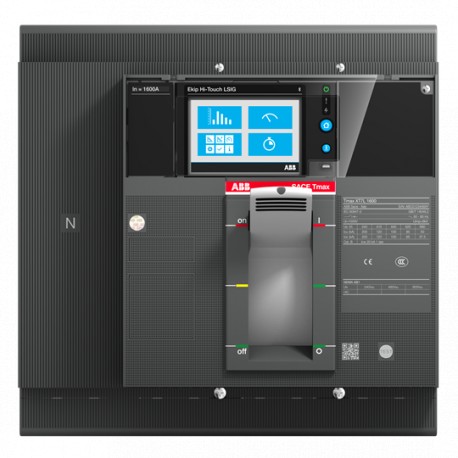

1SDA101183R1 ABB XT7H 1000 Ekip Touch LSI In 1000A 4p F F
1SDA101183R1
101183
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB molded case circuit breaker, identified as part number 1SDA101183R1, provides robust overload and short-circuit protection for heavy-duty industrial power distribution systems. Industrial operators rely on such breakers to isolate faulty circuits and prevent damage to expensive facility infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 0e8018d4-df69-4254-876f-8b9cc6406c8b Italy
- Simplified SCIP: 37ce3c92-cdf7-46e8-a2e6-ce03c11b1e18 Germany
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7HE410DPFF000XXX
- E-Number (Norway): 4380850
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0e8018d4-df69-4254-876f-8b9cc6406c8b Italy |
| Simplified SCIP | 37ce3c92-cdf7-46e8-a2e6-ce03c11b1e18 Germany |
| cd6845c9-75bc-4a36-b325-8e42749bc200 Sweden | |
| b1629a07-6dc8-44e7-8f39-4bf4b18f4565 Netherlands | |
| c3a92d8e-f30e-4704-a9ee-39f838c89b44 Hungary | |
| 389d1c8b-5ff9-404d-afde-6199f66b7a9f Croatia | |
| 59cf2aab-4806-440e-a53f-915257a005cf Germany | |
| 2f9ecccf-0390-425d-b0ac-459216a701bc Portugal | |
| ea6dc71d-da66-4451-8392-8149a89fed04 Norway | |
| a7dafc8c-5d5e-4a01-802d-af34b4703c4f Greece | |
| 389d1c8b-5ff9-404d-afde-6199f66b7a9f Croatia | |
| 95399818-c75a-44f5-ac7f-a7a25a883f1a France | |
| 7018f1a9-af26-4c36-a32a-52f6922b9c7e Finland | |
| 786a6454-9533-4d5b-948f-379d9a6022a3 Germany | |
| 3ad9c896-4388-4f9c-9895-b950c877cbc2 Poland | |
| f8c93d3c-9c37-4643-b087-f0c18579b46f Germany | |
| a5d808de-42e8-4416-abcc-e6b19df77f84 Poland | |
| 2f9ecccf-0390-425d-b0ac-459216a701bc Portugal | |
| a7dafc8c-5d5e-4a01-802d-af34b4703c4f Greece | |
| 51bbb7d3-f117-409c-bda0-5759c16fe77f France | |
| 59cf2aab-4806-440e-a53f-915257a005cf Germany | |
| ea32b34e-5dfb-48cf-a3d1-e942a2a479e8 Hungary | |
| c35bb71c-4817-4c55-96e7-1b55c5d5fa9a Spain | |
| 44375682-8532-4b57-b77e-14c497207391 Estonia | |
| a5d808de-42e8-4416-abcc-e6b19df77f84 Poland | |
| 51bbb7d3-f117-409c-bda0-5759c16fe77f France | |
| c3a92d8e-f30e-4704-a9ee-39f838c89b44 Hungary | |
| 112bfc7f-d6cc-4158-8773-a7a299875c5a Bulgaria | |
| b16b4b71-e502-460d-afcc-4774b3565d1c Czech Republic | |
| b1629a07-6dc8-44e7-8f39-4bf4b18f4565 Netherlands | |
| 95399818-c75a-44f5-ac7f-a7a25a883f1a France | |
| 37ce3c92-cdf7-46e8-a2e6-ce03c11b1e18 Germany | |
| cd6845c9-75bc-4a36-b325-8e42749bc200 Sweden | |
| 380538db-a237-43ae-81b4-1aad522fbcfd Sweden | |
| 5571a102-0c46-43c5-8be3-1ab6c27a4aef Poland | |
| 44375682-8532-4b57-b77e-14c497207391 Estonia | |
| 89a884c6-d69f-4edb-a16c-f9638915f282 Belgium | |
| ea32b34e-5dfb-48cf-a3d1-e942a2a479e8 Hungary | |
| c35bb71c-4817-4c55-96e7-1b55c5d5fa9a Spain | |
| 2428dd9e-539b-42be-9df1-2164918e865b Germany | |
| 4d4e3107-b451-4237-895d-7cd134587d0e Belgium | |
| 7018f1a9-af26-4c36-a32a-52f6922b9c7e Finland | |
| 3ad9c896-4388-4f9c-9895-b950c877cbc2 Poland | |
| 1cf2e155-dd79-405e-a628-987e9e5b09c7 Denmark | |
| 5571a102-0c46-43c5-8be3-1ab6c27a4aef Poland | |
| b16b4b71-e502-460d-afcc-4774b3565d1c Czech Republic | |
| f8c93d3c-9c37-4643-b087-f0c18579b46f Germany | |
| 380538db-a237-43ae-81b4-1aad522fbcfd Sweden | |
| 786a6454-9533-4d5b-948f-379d9a6022a3 Germany | |
| 1cf2e155-dd79-405e-a628-987e9e5b09c7 Denmark | |
| 112bfc7f-d6cc-4158-8773-a7a299875c5a Bulgaria | |
| 4d4e3107-b451-4237-895d-7cd134587d0e Belgium | |
| 89a884c6-d69f-4edb-a16c-f9638915f282 Belgium | |
| 2428dd9e-539b-42be-9df1-2164918e865b Germany | |
| ea6dc71d-da66-4451-8392-8149a89fed04 Norway | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7HE410DPFF000XXX |
| E-Number (Norway) | 4380850 |
| EAN | 8056221014861 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014861 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
